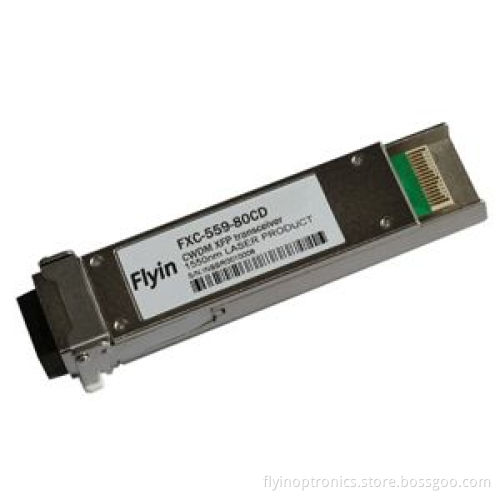

CWDM XFP Transceiver

Flyin Optronics` CWDM XFP Transceivers and compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA. The transceiver is RoHS compliant and leads free per Directive 2002/95/EC.
The transceiver consists of two sections: The transmitter section incorporates a cooled EML laser or DFB. And the receiver section consists of a PIN or APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements.

Features

• Data rate from 9.95Gbps to 11.3Gbps
• Supports Line side and XFI loopback
• Hot-pluggable XFP footprint
• Cooled CWDM EML/DFB and APD/EML receiver
• No reference clock required
• XFI and line side loopback
• +3.3V ,+1.8V power supply
• Diagnostic Performance Monitoring of module temperature
• Compliant with RoHS-6 and lead free
• Temperature range 0°C to 70°C

Applications

• 10G Ethernet
• 10G Fiber Channel
• SONET OC-192&SDH STM-64
• CWDM Networks
