8.4 inch touchscreen industrial panel pc (PPC-804C)
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 2 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 5000 |
IPPC-8.4C

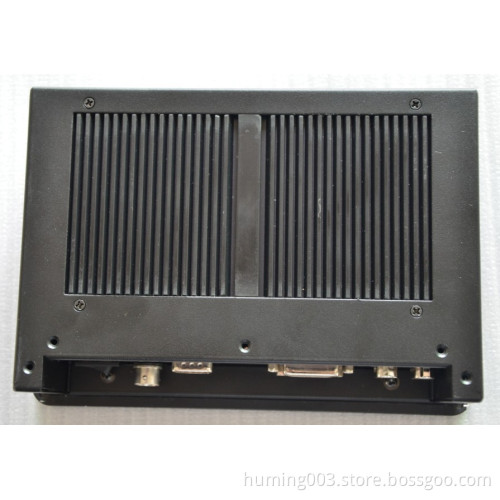

1.The Fanless industrial panel pc was made of brushed aluminum in beautiful shape, no cable is good at shockproof, and high performance at low power consumption, can be used in hard environments. It supports wireless3G/WIFI.
2. With the shockproof, moisture-proof, waterproof and dustproof (meet the NEMA IP65 standard), high temperature resistant, multi-solt and easy to expand characteristics, so it is widely used in industrial control,vehicle control, environmental control ,Miliary control,Monitoring system,Network security,Digital signage,Date storgeand other automation applications.
3.With 8.4 inch resistive touch screen, brightness and contrast can be adjusted, and also have standby energy saving mode.It with integrated industrial-grade low-power embedded motherboard to support support Windows XP, Windows XP Embedded Linux, win7 system ,CF,HDD,SDD, multiple I/O interfaces.
|
Model |
IPPC-8.4C mm |
|
screen size |
AUO 8.4inch 234*169*60 mm |
|
Display area |
170.4*128.3mm |
|
Density Changer |
800*600 1024*768 (optional) |
|
Contrast |
700:1 Typ |
|
Scr screen colors |
262K/16.2M6-bit / 6-bit + FRC |
|
Display brightness |
500cd/m2 |
|
Touch panel |
AMT Touch panel of resistance |
|
Chipest |
Intel Atom D2550+ NM10 |
|
CPU |
Intel ATOM D25501.86G |
|
RAM |
DDR3 2Gb MAX 8Gb |
|
SSD |
SSD32G |
|
System |
Windows XP Windows XP win7 |
|
LAN |
2*RJ45 Intel RTL8111C 1000Mbps |
|
USB 2.0 |
4 |
|
COM(COM) |
4 |
|
VGA |
1 |
|
HDMI |
1 |
|
LPT |
1 (optional) |
|
Microphone Input/output |
1 (optional) |
|
Wireless3G/WIFI |
1(optional) |
|
Operating Humidity |
5 ~ 85% (non-Condensing) |
|
Operating Temp |
-30~ 70 Celsius degree |
|
Storage Temp |
-40 ~70 Celsius degree |
|
Color |
Black |
|
Power |
110V-240V AC |
|
Power adapter |
12V/5ADC |
|
Height |
3.4KG/set |
