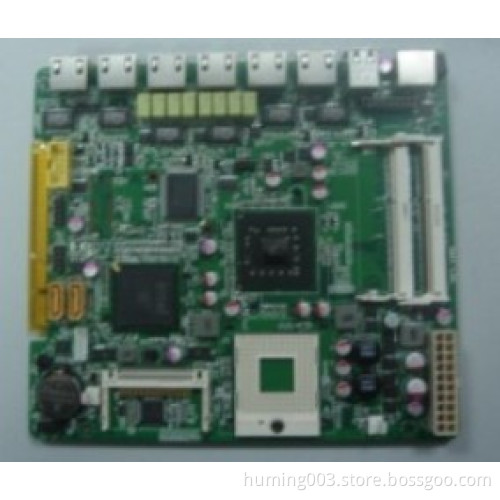

Firewall machine with dual core cpu

Model

 GM-45-6LAN

CPU

 Support Intel Penryn Processor

 CPU support: Micro-FCPGA479 (Socket-P)

 Front side bus: 667/800/1066 MHz

Chipset

 Intel GM45 & ICH9-M (82801IBM)

Memory

 Two DDRIII 800/1066 up to 8GB

BIOS

 AMI PnP 8Mb SPI ROM

Display

 Intel integrated extreme GMA 4500MHD

 (Graphic Media Accelerator) Technology

Peripheral Support

 2 x serial ATAII interface with 300MB/s transfer rate

 4x USB connector, 1 x PS2,1 x RS232, 1 x VGA ,4 x USB connector, 1

 2 xLED(PWOR_ LED+HD_ LED

 1 x RS-232(RJJ 45)Port

 6 x LAN Port 82574LGigabit LAN 2x bypass,2 x USB,LAN_ LED , 1xCF

Power connector

 ACPI 1.0 compliant, supports power saving mode

Expansion

 One PCI Express mini card, One PCI

LAN Interface

 6 x Intel82574LGigabit LAN 2* BY PASS

Watchdog Timer

 1-255 step,can be set with software on Super I/O

Hardware Monitor

 Operating voltage, CPU temperature and fan speed

Dimensions

 170 x190 mm

Environmental factors

 Operation Temp: 0C - 60C

 Storage Temp.: -20C - 75C

 Humidity: 0% - 90%
