12V Micro Brushless DC Submersible Pump Low noise Low power

Corrosion proof Fit For Water heater pressure Small-scale irrigation

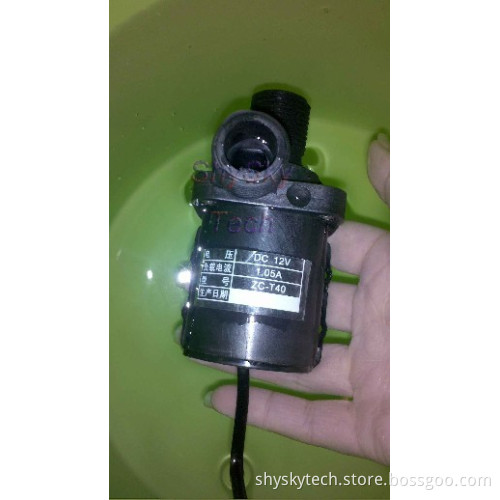

This is a high-quality made DC submersible pump
Built by a brushless motor so that quieter and last longer than a non-brushless pump, plus, it will not generate electric spark like the non-brushless pump does, so it's safer, can be used to pump oil (inflammable fluid)
Super long working lifespan (more than 30,000 hours), maintenance-free
Small size, low consumption, low noise(less than 35db)
Submersible and entirely waterproof, easy to install and use
Can be used to pump water, oil, acid and alkali solution
Variety of power supplies: solar panel, DC electric source and battery

For Pump, Water plays three roles: 1, the medium being pumped; 2, coolant of pump; 3, lubricant of pump.

Features:

Brushless, permanent magnetic rotor, maintenance-free, long life

Small size, high efficiency, low consumption, low noise

Stator and circuit board sealed by epoxy resin, completely water proof

Parameter adjustable, 12v pump`s head can be adjusted from 3.8m

Can be fixed on the vessel wall with sucking disk

Can be customized for friends with bulk product demand

Specifications:

weight: 220g

Dimension of inlet and outlet:20.3mm (1/2 inch thread)

No-load rated current: 0.65A or less
Wide Working Voltage Range: 5-12Vdc (12Vdc rated)

Pressure: 2.0Kg 10%
Load rated current: 0.8A ~ 1.2A
Load rated spit water: 1320CC 10% / min
Suction lift 3.80M less
Noise: 50dB MAX (background noise 40dB less than 0.5M)
Water temperature: 0 ° C ~ 95 ° C
Humidity: 45% to 85%

Fluids: Water, oil, gasoline, acid and alkali solution, etc

Power Supply: can be battery, DC electric source or solar panel, etc

Super Long Life: >3years, can be continuously working, without maintenance

Water Proof Class: IP68 (Fit for submersible installation)

How to Choose pump:

1. Make sure the working voltage, current, head and flow. The Max head means the static head. The pump can lift to the max heightwhen there is no flow. If you want special flow at special height, you must choose more higher head than the height you want to pump(refer to the above Head-Flow Curve graph).

2. Make sure the dimension(threaded interface or not, the direction and diameter of outlet and inlet).

3. Working environment(temperature and medium).

4. Other functional requirements, such as time control, motion control, pressure control, flow control, and speed adjustment.

Note:

1. Working at rated voltage. The positive pole isred wire, the negative pole is black wire.

2. This pump is centrifugal pump, it can't vent the air automatically, so it must be operated by submersible installation.(if outside water installation, you should make sure it is installed blow the liquid surface)

3. When blocking, long-running is not allowed.

4. Preventing any hard particles entering the pumps.
