Micro DC 3V-6V horizontal submersible pump for watering DIY

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

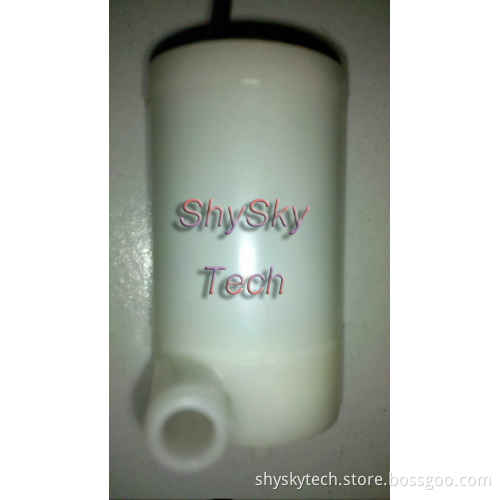

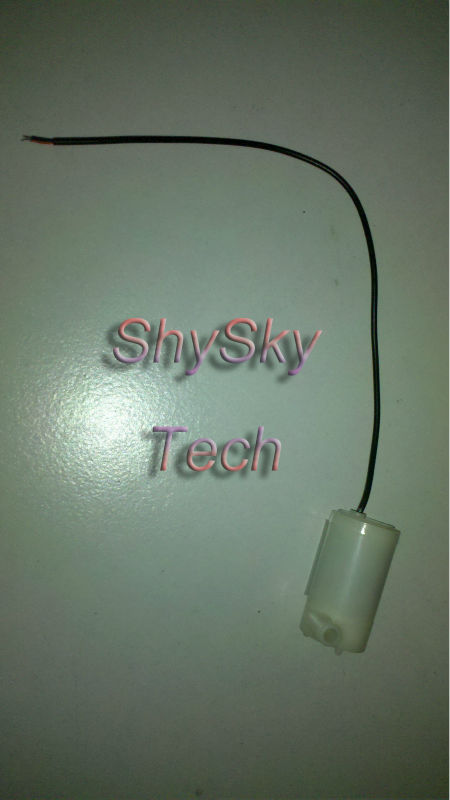

Micro DC 3V-6V horizontal submersible pump for watering / DIY toys / solar pumping

NOTE: 5Pcs/Lot FREE SHIPPING Via China Post Air Mail / ePacket

pic-0029-20130109

Specifications

Driving mode: brushless dc design, magnetic driving

Material: engineering plastic

Diameter: 24mm

Length: 46mm

Height: 33mm

Dimension of outle: 7.5mm O.D. / 4.7mm I.D.

Working voltage range: 3V-6V

Lift: 40cm-110cm

Flow rate: 80-120L/H

Power: 0.4-1.5w

Attention

Magnetic design, no direct connection of motor and impeller, no water leakage from turbine to motor

Submersible installed, pump should work under fluid surface, or high temperature and friction will cause relative loud noise and hurt pump itself

Keep the fluid clean, and clear pump regularly to avoid impurities clogging small pumps

pic-0143-20130109

Application

Can be widely used in drinking fountains, medical equipment, micro water cooling system, water circulation system, etc.
