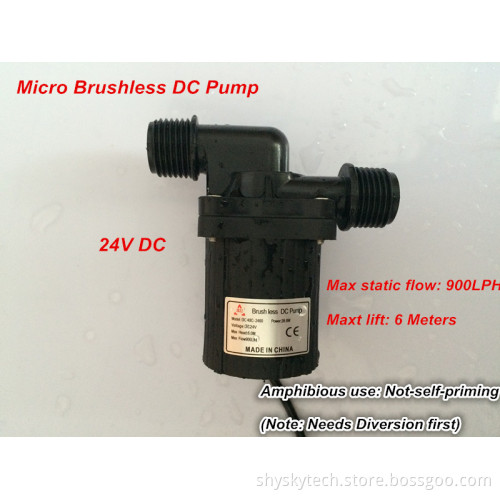

Small Water Pump DC40C-2460, for Water Circulation Aquarium Car Washing Fountain Irrigation, Submersible, 900LPH 6M

Small Water Pump DC40C-2460, for Water Circulation Aquarium Car Washing Fountain Irrigation, Submersible, 900LPH 6M

Get Latest Price

Payment Type:: T/T, L/C, D/A, D/P, Western Union

Incoterm:: FOB

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Delivery Time:: 10 Days

Transportation:: Ocean, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	10000
Supply Ability:	10000
Payment Type:	T/T,L/C,D/A,D/P,Western Union
Incoterm:	FOB
Transportation:	Ocean,Air

Product Description

Small Water Pump DC40C-2460, for Water Circulation Aquarium Car Washing Fountain Irrigation, Submersible, 900LPH 6M

Features

Small size, high efficiency, maintenance-free, low consumption, strong anti-jamming ability,stable performance

Brushless with no pollution, adopts high-performance ceramics shaft and high-precision carbon fiber sleeve together (stainless steel shaft optional for reducing cost long life span)

Stator and control circuits are completely sealed by epoxy resin completely separated with rotor, waterproof, avoided water-leakage problem which long exists in normal DC motor pump products

Protection functions can be customized such as lock protection, dry-run protection and so on.

Lift of pumps can be doubled when contact the pump in series.

Can be installed submersible or outside water (should below water level)

Offer ODM serve for pump and other controller system

Specifications

NO.	Item	Specs
1	Dimension and weight	88.5mmx81.5mmx43.8mm; 235g
2	Installation dimension	88.5mmx81.5mmx56mm;
3	External diameter of outlet	1/2`` threaded(M20mm)
4	External diameter of inlet	1/2`` threaded(M20mm)
5	Driving mechanism	Brushless, magnetic separation
6	Material of pump shell	ABS,PES/SPS/PPS/PA66+30%GF (Optional)
7	Condition of use	Can continuously work, submersible or land use (not self-priming)
8	Suitable medium	Water, oil, or normal acid/ alkaline liquids

		(Pre-test needed for special liquid)
9	Max working temperature	60℃
10	Power consumption	2.5W~28.8W
11	Rated voltage	24Vdc
12	Working voltage range	5Vdc ~ 24Vdc
13	Max load current	1.2A
14	Max horizontal flow rate	15L/MIN
15	Max static lift	6M
16	Noise class	<40dB
17	Waterproof class	IP68(suitable for submersible installation)
18	Life span	Can be more than 30,000hrs
19	Power supply	Suitable for solar panel, batteries, adapter or other power module
20	Protection function	Water protection, dry-run protection, stall protection, stuck protection
20	Protection function	(functions are optional for customization)
21	Power regulation function	Speed can adjustable by PWM signal, 0~5V analog signal or potentiometer (customized function)

photo IMG_2107__zpshq0iay8b.jpg

photo QQ20150408182334_zpsxzvd30pp.png

Applications

Products can be widely used in electric automotive cooling systems, automated equipment water cycle, water cooling and other electrical appliances, water dispenser, sanitary products, paper shredders, soilless cultivation, plumbing mattresses, air pump, aquarium fish tank,desktop crafts, foot bath, plumbing mattresses, water heaters, PC water cooling, water cooling fan, medical devices, pharmaceutical systems, chemical circulation systems,cooling system, water-cooled air-conditioning, water cooling fan, mobile bath, solar fountain, solar circulation system, water supply systems, small irrigation systems, water treatment systems, automobile circulation systems, automotive heating systems, machine tools, household appliances, kitchen appliances, bathroom products, hot water circulation system.

photo IMG_2134_zpsdkfiqxvu.jpg photo IMG_2127_zpshjp9o5ae.jpg photo IMG_2114_zpswwcoyxb9.jpg photo IMG_2155_zpswedzy4cv.jpg

photo Severalnotesaboutuseofpump_zpsd512feb7.png
