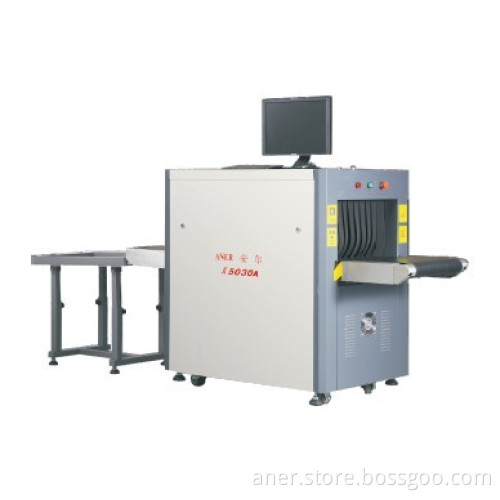

X-ray metal inspection machines

X-ray metal inspection machines

Basic parameters:
Size of tunnel:  500(W)*300(H)mm
Conveyor speed: 0.22m/s
Conveyor max load: 150Kg
Wire resolution : 0.101mm metal line

Film safety:  for ISO1600
Maximum leakage radiation: <0.05Gy/h

X-ray generator:
Ray direction :  orientation vertically upward
Tube current :  0.4~0.5mA(adjustable)
Tube voltage :  80 KV(adjustable)
Angle of X-ray:  60°
Cooling/working periods :  Sealed oil cooling/100%


Image processing system:
X ray sensor :  L type photoelectric diode array detector(Single energy), 12bit depth
Monitor :  High resolution 17 "LCD display
Color image display :  24 bits nature color display
Edge enhancement :   The object contour edge more distinct
Super image enhancement :   Image detail more clearly
High penetration display :  Improve the image contrast of the bright area, make easy penetration area more clearly
Low penetration display :   Improve the image contrast of the dark area, make the difficult penetrated area more clearly

Magnifier:   function of partial enlargement

Brightening/ darkening:   Increase the brightness of the image/ Reduce the brightness of the image
Image recurrence:    display previous twenty images and process any one of them
Image restoration:  restore image to initial status
Image storage:   save any image real-time, and process any one of them in operation status.

operating environment:
Operating temperature/humidity :    0-45/20%-95% (non-condensing)
Storage temperature/humidity :  -20-60/20%-95% (non-condensing)
Operating voltage :   220VAC(10%)  503HZ
Power wastage:   1.0KW(max)

Noise:    <60DB
