SL-005 Flexible Ionizing air Nozzle
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 2 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Shen zhen Mingda Technology Co.,Ltd
Unit 2, Huakang building, Huafu Road, Futian district, Shenzhen, China

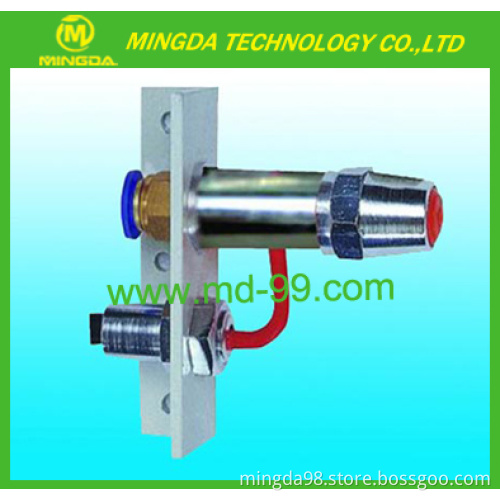

SL-005 Ionizing Air Nozzle
Specifications
Dr.Schneider pc SL-005 Ionizing compressed air nozzle delivers ionization to neutralize charges in very specific areas such as inaccessible trouble spot. It can be ideally installed to a fixed work station in order to dissipate static charges. Air nozzle has an effective area of 1,000mm. Nozzles can be fitted and installed in many configurations to meet specific requirements. It operates with SL-007 Power Supply (which should be ordered separately)
Techneque parameters:
|
Operating Voltage |
4.6KV(SL-007) |
|
Current Consumption |
0.2A |
|
Operating Temperature |
0-50 |
|
Air Volume |
0.4kg |
|
HV cable length |
2meters |
|
Operting air pressure |
40~70psi |
|
Operting air velocity |
10m/1sec |
Test results:
|
Decay Test Conditions |
||||
|
Operating Voltage:4.6kv Testing Voltage:1KV to 100V Temperature:22 |
||||
|
Distance |
300mm |
600mm |
900mm |
|
|
Decay time |
Positive |
1.2s |
2.5s |
4.0s |
|
Nefative |
1.2s |
2.4s |
3.9s |
|
