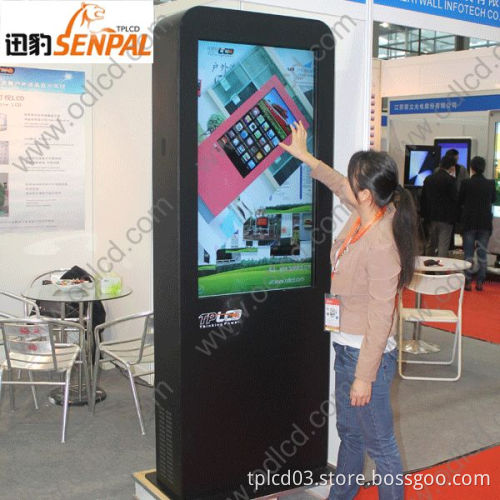

All weather outdoor LCD touch screen kiosk
- Payment Type:
- T/T
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 28 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | SHENZHEN |
|---|---|
| Supply Ability: | yes |
| Payment Type: | T/T |
| Certificate: | CE, ISO ,ROHS |
| Transportation: | Ocean,Air |
Features:
1. All weather high brightness outdoor LCD touch screen kiosk;
2. IP65 enclosures, waterproof, dustproof, anti-humidity, anti-corrosion and anti-vandal;
3. High-Brightness LCD Panel, brightness up to 3500nits, readable under direct sunlight;
4. AR Bonding TM-protection 6mm glass, anti-glare, high transmittance, low reflectivity and anti-ultraviolet;
5. Intelligent air conditioner, integrated cooling and heating system;
6. Automatically adjust monitor brightness according to ambient brightness, maximum energy saving;
7. LCD panel will not turn black under direct sunlight;
8. Modular design, easy to maintain;
9. Operating Temperature -40°C to 55°C;
10. Intelligent surveillance;
11. Custimized design for client;
12. 19inch to 82inch outdoor LCD advertising display is available;
13. Optionally integrating Touch Function, WIFI, Networks, Information Issue System, Remote Monitoring System;
14. CE, EMC, ROHS.
Specification:
|
Display |
Panel Size |
55" |
|
Aspect Ratio |
9:16 Portrait |
|
|
Resolution |
1920*1080 HD |
|
|
Brightness |
1500 cd/m² |
|
|
Contrast Ratio |
3000: 1 |
|
|
Viewing Angle |
178°horizontal / 178°vertical |
|
|
Display Area |
572 mm x1018mm |
|
|
Video Interface |
VGA HDMI |
|
|
Audio Interface |
AUDIO IN |
|
|
Brightness Control |
Automatically light sensor |
|
|
|
CPU |
Intel ATOM D525 Dual Core 1.8G |
|
Memory |
2 GB DDR2 800 MHz |
|
|
Display Card |
NVIDIA GT218 512M Independent Video Memory |
|
|
Hard Disk |
250 GB |
|
|
Interface |
12V DC-in, Mic/Audio In, USB 2.0 Port (4) , HDMI Port, VGA Conector 10/100 /1000 Adaptive Ethernet |
|
|
Operating Parameter |
OperatingTemperature |
-40°C to +55°C |
|
Operating Humidity |
5%to100% |
|
|
Protection Rating |
IP65 |
|
|
Power |
AC 108-115V, 50/60Hz |
|
|
AC 208-240 V, 50/60 Hz |
||
|
Power Consumption |
1.0 kW Mainly for AC starting |
|
|
Overall Unit |
Dimension(WxHxD) |
1980 mm x 740 mm x 255 mm (Exclude foundation) |
|
Packing Size |
2140mm* 840mm*460mm |
|
|
Weight |
160 kg |
|
|
Glass |
6mm Safe glass with high transmission, anti-reflective, heat insulation |
|
|
Air Conditioner |
Integrating cooling and heating |
Optional Configuration
|
1.Touch Function |
Interactive Touch |
|
2.Wireless Networks/WIFI |
External Wireless Network Interface connecting to PC |
|
3.Remote Info Issue & Management System |
Integrated Networks remotely issue contents to display terminal and manage the contents of the display terminal as well |
|
4.Remote Environment Monitoring System |
Integrated Networks available for remotely monitoring the inner operating status in the machine |
|
5.Anti Graffiti Protection |
Special coating allows easy removal of graffiti without damaging surface |
