Remote Relay Switch by Mobile phone SMS text,Motor remote co
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 3 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong |
|---|---|
| Supply Ability: | 1000pc |
| Certificate: | SEM10050487 |

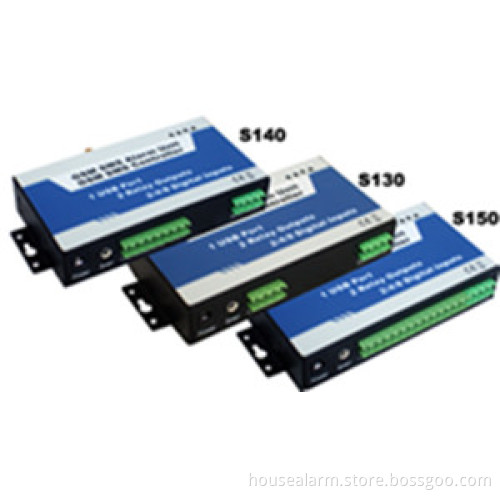

The GSM SMS Controller-Alarm S130 S140 S150 provides 2/4/8 digital inputs(NC/NO/EOL);
The GSM SMS Controller-Alarm S130 S140 S150 provides 2 relay output(3A 240VAC), one is link-output relay, special for switch on or off appliance while the system alarm, another is independent output relay, it can be switched on or off by SMS commands.
The GSM SMS Controller-Alarm S130 S140 S150 is very easy for setup via USB Port to PC.
The GSM SMS Controller-Alarm S130 S140 S150 allows you to monitor and control an alarm or remote stations or equipments or machines by SMS.
The GSM SMS Controller suitable for below applications:
1. Security Alarm System applications;
2. Supervision and monitoring alarm systems;
3. Automatic monitoring system;
4. Vending Machines security protection;
5. Pumping Stations, Tanks, Oil or Water levels;
6. Buildings and Real Estate;
7. Weather Stations;
8. River Monitoring and Flood Control;
9. Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.
GSM SMS Controller & Alarm Features:
1 relay output (240VAC/3A) can be switched ON/OFF by sending a SMS text;
1 relay output (240VAC/3A) can be switch on 0-120mins if any inputs triggered;
2/4/8 Alarm logic inputs, NC or NO and EOL is optional;
3 SMS Alert numbers and 5 auto-dial numbers can accept to the alarm message;
Two-way voice communication by external microphone and speaker;
Supports armed, disarmed, inquiry status, switch ON or OFF relay output by SMS Commands;
Password protection, prevents unauthorized user;
Configuration from PC Programmer software via USB port;
Time stamped alarm messages;
Backup rechargeable battery inside, runtime more than 24hours;
Operate from anywhere, anytime;
Based on GSM Network Qua-band(*Optional), applied to many applications.
Technical specifications:
Rated Voltage: 12VDC@ 2A
Working temperature: -10°C~+60°C
Storage temperature: -20°C~+60°C
Relative humidity: 10-90%, No condensation
GSM frequency: 850/900/1800/1900Mhz
Communication protocol: GSM PHASE 2/2+ (include data service)
Digital inputs: 8
Backup Rechargeable Battery: 24Hours in standby mode.
Related Voltage of the Output Relay: 3A/240V AC
LXWXH : 153x86x28mm
Net Weight: 0.60Kg
6. Standard Packing List:
Control Unit X1, GSM ANT X1, PC Configurator and User Manual X1(CD), Connectors, AC/DC Adaptor X1
Here is some policy of our company on sales management.
1.Payment: T/T or Western Union
2. Delivery Method: By DHL or TNT or UPS or other Express. please make sure the DHL can pick up the parcel because of it includes the Battery inside.
3.Minmum order:1 piece.
4 .Delivery Time: 1-3 days for normal samples.
5.Warranty: 1 Year after we shipped out. We're refused supply the warranty to the personal buyer in order to protect our agent and partner benifits, we're only supply the warranty and support to agent and dealers. And the agent or dealers can send the defective units back to us once per year.
