1CH SD Car DVR KD-302
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | china |
|---|---|
| Supply Ability: | 4000 |
| Certificate: | CE |
Selling Points:
1. D1 704*576 Resolution
2. 32GB SD memory record
3. Easy Installation for vehicle use
4. No-MOQ service with fast delivery
5. 15 days for un-conditional return for samples.
Features:
Resolution: D1 (704*576), VGA (640*480), QVGA (320*240)
Power-off protection & wide voltage 8-32V supplying cameras
32GB SD card supported, recording up to 32hours (D1, 30f/s)
Ignition/power-up/manual/motion detect recording
Mpeg-4/ASF video format, MP3 audio format
Frame: 5, 15,30f/s selectable & overwrite

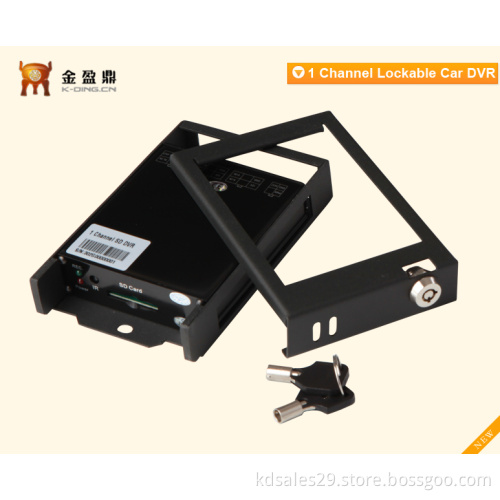

Metal lock for SD card and cables access
Item
System
Data
System
Language
Simplified/Traditional Chinese, English
Interface
OSD Menu
Data security
Bracket lock
Video
Video input
Single channel video input
Video output
Single channel video output
TV Standard
PAL/NTSC
Video compression
MPEG-4��30fps @ D1
Audio
Audio input
Single channel audio input
Audio output
Single channel audio output
Audio mode
Simultaneous Recording
Image & storage
Image format
QVGA/VGA/D1 for selection
Video bit rate
3 image levels and 3 frame rates for selection
Audio bit rate
8KB/s
Storage
Supports up to 32GB SD Card
Alarm
Alarm input
1 alarm input, high level alarm above 4V
Alarm output
1 alarm output, high level 12V output
Communication
Interface
RS232
Supports 1XRS232(built-in)
Playback
software
Playback analysis
Playback on system via monitor/PC
Software
update
Update via SD card
