CAMA-Mini100 Fingerprint reader for Access control system
- Min. Order:
- 50
- Min. Order:
- 50
- Delivery Time:
- 10 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

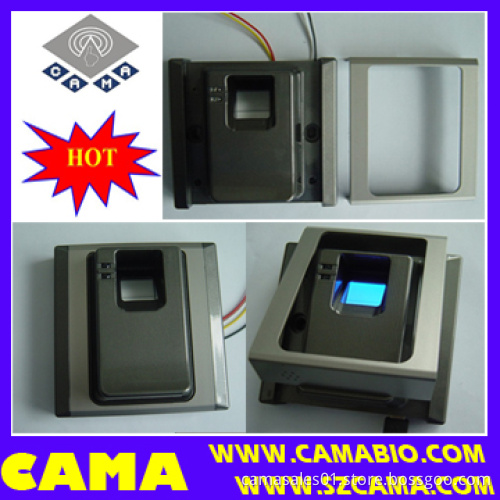

CAMA-Mini100 Fingerprint reader for Access control system
Features:
Parameters:
◆ CAMA patented super fingerprint algorithm
with excellent performance with difficult fingers such as dry, wet, dirty
fingers, etc. Unique self-learning function with 360° verification function
◆
It features small size, low power consumption, simple ports, and high
reliability
◆ Achieving fingerprint enrollment and verification at the
condition of minimum storage
◆ Optical total reflection fingerprint
sensor
◆ 1:N verification and 1:1 identification function
◆ Verify mode:
fingerprint, ID card, fingerprint+ ID card
◆ Self-learning function of the
fingerprint features
◆ Admin. Right: 3 administrators and 2997 ordinary
users. The first enrolled three ID numbers are the administrators
◆ Automatic
Wakeup function
◆ Access to standby situation by instruction control
module
Parameter
Description
Sensor
CMOS image sensor, optical total reflection
Scan area
18mm X 20mm
Fingerprint image
210 x 250 (pixel)
Fingerprint capacity
3000
Fingerprint capacity
0.001%
FAR
≤ 0.01%
FRR
<0.1%
Identification speed
1:1 <0.5S; 1:N (2000 fingerprints) <0.9S
Communication Port
RS485, MiniUSB, Wiegand 26 or Relay
Work Supply
DC12V
Work Current
< 100mA; Standby Current: < 20μA
Work temperature
-10 ℃- 60 ℃
Work humidity
20%– 80%
Dimensions of reader
86*86*36mm
Applications:
Factory, institutes, military, bank,
warehouse security management, home, office, flat, etc.
