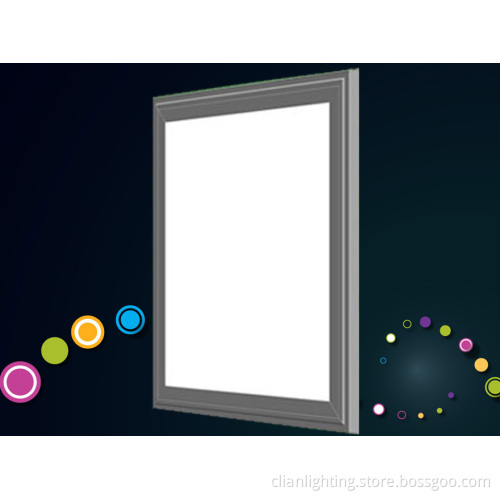

Energy Saving led panel light 60x60 30W for office school
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Supply Ability: | 200 |
| Certificate: | CE ROHS FCC |
Energy Saving led panel light 60x60 30W for office/school/hospital/supermarket lighting with high brightness 3014smd led
Specification:
|
ITEM NO. |
|
|
|
NO. |
Specification |
|
|
1 |
Input Voltage |
AC85-265V |
|
2 |
Power Consumption |
30W |
|
3 |
Luminous Flux |
>2000Lm (Cool white) >1900Lm (Natural white) >1800Lm (Warm white) |
|
4 |
Color |
Cool white/Natural white/Warm white |
|
5 |
Color Temperature |
2700-3300K(Warm white) 4000-5000K (Natural white) 6000-7000K(Cool white) |
|
6 |
Life Time |
>50,000 Hour |
|
7 |
Operating Temperature |
-10°C to +40°C |
|
8 |
Storage Temperature |
-20°C to +85°C |
|
9 |
Humidity Operating |
10-80% |
|
10 |
Humidity Storage |
10-80% |
|
11 |
Luminosity(1m height) |
>500Lux(1.0Meter, cool white) >430Lux(1.0Meter, Natural white) >380Lux(1.0Meter, warm white) |
|
12 |
Certifications |
CE, ROHS |
|
13 |
Weight |
5.5KGS |
|
14 |
Size |
65*7*69.8cm |
|
15 |
IK CLASS |
IK04 |
|
16 |
IP CLASS |
IP41 |
|
17 |
Anti-electric Rating |
Class III |
|
18 |
Fixing Ways |
In-built, Mounting, Suspending |
Features
1. 70%~80% energy saving than fluorescent lights.
2. 5-year life span
3. Wide range of input voltage: AC85-265V
4. Environment and health protection: No UV &IR light, No Mercury, No flash, visual comfort
5. New high efficiency constant current driver
6. Special circuit design, each group of LED work separately, avoiding any problem of lighting output caused or influenced by single faulty LED
7. Dimmable with optional dimmer and wireless remote control.
Applications
Hotels, Hospital
Conference / Meeting rooms
Factories & Offices
Commercial Purposes
Residential / Institution Buildings
Schools, Colleges & Universities
Places where energy-saving and high color rendering index lightings required.
Installation:
- Turn off the power.
- connect the commercial power (85V-265V) with the input of the matched power supply, make sure that no copperware exposed.
-
Connect matched power supply and panel light together through the DC plug.
Insure safe connection. - Fix the panel light and power supply at suitable place.
- Turn on the power,can immediately use.
PACKING
All dimension tolerance is ±0.5mm unless otherwise noted.
Inner Carton : 700*80*698mm (1pcs/ctn)
Outer Carton : 750*280*730mm (3pcs/ctn)
Net weight of each piece:5.5KG
