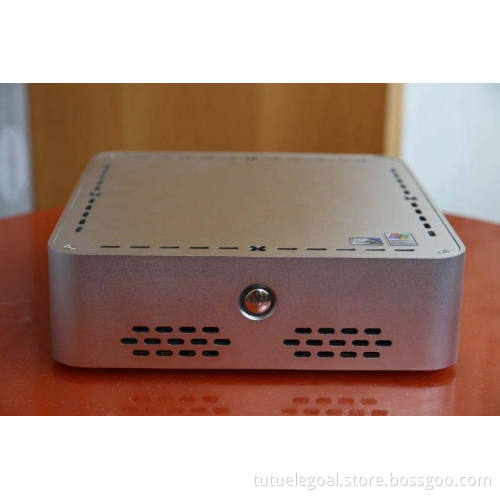

Intel Atom D525 dual-core mini PC Ele-D525(C)

D525 mini PC has powerful functions and flexible customization, but it has only 30W power consumption--1/6 power consumption of conventional computers. With Atom processor and support HDMI

Standard Configuration:

D525 1.8GHz CPU, 2G DDR3, HDD 20G or SSD 8G

Independent Configuration: 2G DDR3, 320G HDD

Advanced Configuration: 2G DDR3, 500G HDD

Product Information
central processor	support Intel Atom mononuclear D425 processor (45nm,1.80GHz,1024MB level 2 cache)
central processor	support Intel Atom dual-core D525 processor(45nm,1.80GHz,1024MB level 2 cache)
chipset	adopt Intel Atom D525/D425 + NM10 high speeding chipset
vedio card	built -in Intel GMA 3150 vedio card (shared memory 128/224MB)
memory	1*200 needle single channel DDR3 1333/800/667 memory , maximum support to 2GB
expansion slot	1*PCI slot
storage function	2*Serial ATA2 3Gb/s controller
audio function	Realtek ALC662 6 track high fidelity audio
network function	1*RTL8103EL MB card
network function	support network wake up
On-board LVDS interface	1LVDS1 16 power interface
On-board LVDS interface	1LVDS 215 interface (support single 18bit LVDS interface)
backplane I/O port	1*12V DC- input
	1PS/2 mouse & 1 keyboard connector
	1*COM interface
	1*VGA interface, HDMI interface
	1* parallel interface
	2*USB 2.0/1.1 interface (support 4 pieces of USB equipment)
	1*RJ-45 network interface
	1* audio I/O interface (microphone and line output)
built-in I/O interface	2*fan connector
	5* RS232 connector
	1VGA 25 interface
	2*USB 2.0 interface (support 4 pieces of USB equipment)
	1*CD input
	1audio interface (25 take out 8)
BIOS	AMI 8MB DPI Flash ROM
other function	ATM, automation, medical equipment, safety field, network, POS, General Application, vedio game, transportation industry
product size	Mini ITX Form Factor(17cmx17cm)
shipping weight	Mini PC: 1.9kg; (20225.6cm) GW: 2.5kg; (262713cm)
