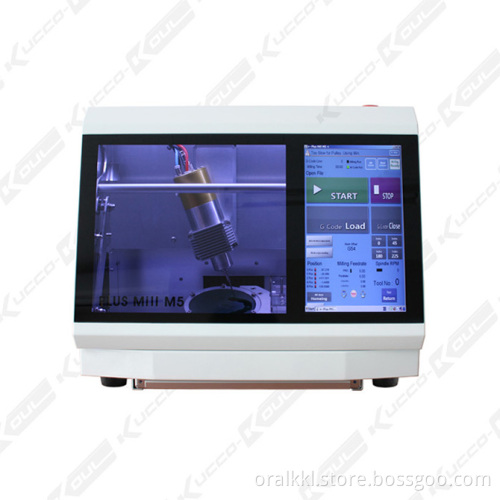

CAD CAM Milling Machine Compact Dental CNC Machining Solution 5-Axes

Kucco-Koul Dental CAD/CAM system CNC machining machine is perfect for zirconia milling work , M5 5-axes milling machine is a efficient machine with excellent technique and deft design for dental laboratory.

The M5 5-Axes is the most efficient CNC milling machine for machining and mill all important materials like Zirconium oxide, Aluminum oxide, Resins and Wax.

Engineered specifically for the production of precision denture, 5-axis simultaneous machining capability and a 4-station automatic tool changer with tool length sensor for added production convenience .

Simultaneous Processing 5-Axes

-5-Axis Milling Machine With Simultaneous Controller And Stepping Motor

-Automatically 4-Times Tool Exchange And NC-Controlled Axes, 40 Units Per Blank And More Can Be Manufacture.

-High effectiveness spindle : 30,000RPM, 450W

-Undercut Milling by Rotating and Tilting Table

Friendly Interface for users

-You can use it easily and quickly

External devices On/Off switch

-Direct control power and reduce unnecessary energy consumption

Tool length sensor

-Automatic tool length measurement and broken tool detection

Transmit the Generated Data by the LAN

-You can use it easily by wireless keyboard and mouse via inside USB 20 and Transmit the Generated Data by the LAN, Online Maintenance Available on the internet, Easy upgrade through Online requests

Parameters :

Number of Axes: 5

Spindle: 30,000RPM 450W (High frequency)

Automatic tool changer: 4 (with sensor)

Max tilting angle: A-axis 360º, B-axis ±25º

Voltage: 220V 60Hz (1.3A, 130W)

Compressed air: 5bar

Weight: 40kg

Dimension (W x H x D): 450 x 490 x 382mm

Controller and monitor: Build-in

Dust collector: Build-in

Open system: Accepted

Automatic over night machining: Accepted

Remote maintenance: Accepted

Production capacity: 80 units per day, approx (Bridges with up to 14 units per blank)

Chuck/shaft/shank diameter: 4mm

Tool length: 50mm/±2mm

Block type: 98mm

Materials: Zirconia/PMMA/Wax

M5 milling machine is deft design and compact structure but large work-space

- The best technology by technician and engineer to research and develop this most highly efficient Dental CAD/CAM Milling machine.

We also supply variety of dental clinic products; Dental Unit, Dental X-ray, Teeth Whitening Machine, Dental Scalers, Dental Handpiece, Dental Light Cure Unit, Dental Camera and more Dental Materials

If you have interested in our products, please don`t hesitate to contact us, You can send the inquiry mail to ..... (Email Address): oral(at)kucco-koul.com
