BIDI SFP+

Description:

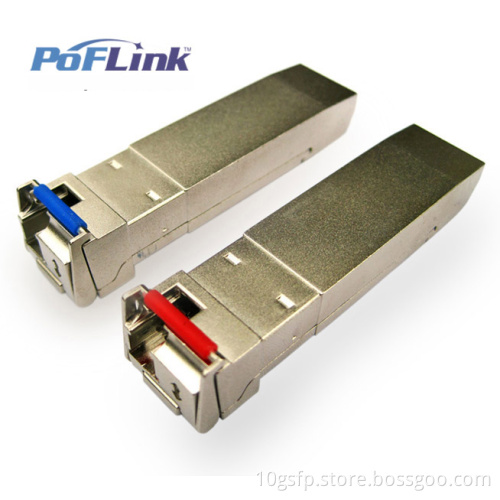

POFLink's BIDI SFP+ transceivers are designed for bi-directional 10GbE optical data communications such as IEEE 802.3ae 10GBASE-BX by using 1330(1270nm) transmitter and 1270(1330) nm receiver. The transceiver consists of two sections: The transmitter section uses a multiple quantum well 1330(1270) nm DFB laser and is a class 1 laser compliant according to International Safety Standard IEC 60825. The receiver section uses an integrated 1270(1330) nm detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

POFLink offers 10G WDM SFP+ transceivers which reach distances from 10KM up to 80KM

Features:

Up to 10.3 Gbps Bi-directional Data Links
Fully Compliant with SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE-BX
SFF-8472 Digital Diagnostic Function
Simplex LC Connector
1330TX/1270RX and 1270TX/1330RX
Distance Up to 10, 20, 40 km
Only Required +3.3 V Power Supply
RoHS Compliant

Application:

10GBASE-BX at 10.3125 Gb/s
10GBASE-BX at 9.953 Gb/s
1000 Base-LX Ethernet
