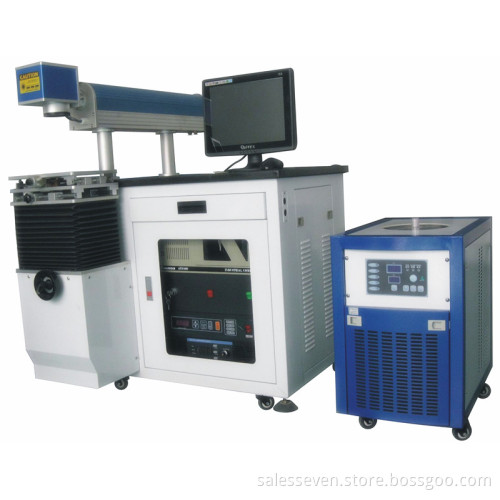

Diode Pump Laser Marking Machine
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 10 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | Shenzhen |
---|---|
Supply Ability: | 100 |
Certificate: | CE ISO CQC |
DM-DP50W Diode laser marker is widely used for marking many materials such as Metal, alloy, oxide, ABS, epoxy resin, painting ink and IC ceramic etc. the cost of consumpalbe materials is low, stable performance.
DP semiconductor side-pump laser marker is often called semiconductor YAG side-pump laser marker or diode YAG side-pump laser marker. Semiconductor marking machine takes semiconductor laser (with wave-length 808nm) diode pump Nd:YAG as medium .The medium produces a lot of reverse particles to discharge laser, the wave-length is 1064nm with strong pulse under the function of Q-switch so the efficiency of the electron-light transformation is high. Under the control of the computer the resonance mirror can change the path of the laser beam to accomplish automatic marking.
Max. laser average power 50W
Beam quality <6M2
Laser wavelength 1064nm
Repetition frequency ≤50KHz
Pump source Imported semiconductor modules
Cooling Mode Water-cooling
Standard marking area 100mm×100mm
Marking area option 50mm×50mm, 150mm×150mm, 200mm×200mm, 300mm×300mm
Marking depth ≤1.8mm
Linear speed ≤7000mm/s
Min. line width 0.01mm
Min. character size 0.2mm
Repetition accuracy ±0.002mm
Control computer CPU:P4, Memory: 512M, 80G HDD, 17" LCD
Software system WINXP + special marking software
Working table dimension 150mm×200mm
Position indication LD red light, 650nm wavelength
Automated coding Can mark sequence number, batch number, date, bar code, two-dimensional code etc
Characters Support Chinese characters such as song, italics, Lishu, Font, bold font, True type fonts etc.
Barcodes support CODE39, CODE128, EAN code, EAN_128 barcode, 39 code, Data Matrix, PDF417 etc.
File format support DWG, DFX, BMP, JPG, PNG , TIF, PCX, TAG, GIF, PLT etc.
Consumed power ≤1.5KW
Electrical demand 220V±10%/50Hz/30A
Usage environment Clean, no shaking, Temperature 13 ℃ -28 ℃, humidity 5% -75%
Consumable material krypton lamp, filter, water, electricity
Optional accessories Anti-laser glasses, metal business cards, Octave films, rotating fixture
Application
1. Ink and paint; phone battery labels, panels, phone key-press, small daily necessities ,accessories and so on.
2. Ceramics, EP materials; marking of electronic component package, IC, etc.
3. Plastic products; mark device shell, electronic products, LOGO, and other numerical orders
4. Metal and its surface; Stainless steel, copper, aluminum and oxidation, electroplating; used in marking hardware, daily necessities, electric cladding, Phone case etc.
5. Keyboard and keystoke; Fine Marking of keyboard and keystoke.
[note] Welcome to send samples to our company, we can make samples for free and choose the most suitable machine for you or do customize for your special request
