P16 outdoor flexible led display
- Payment Type:
- T/T
- Incoterm:
- EXW
- Min. Order:
- 1 Square Meter
- Min. Order:
- 1 Square Meter
- Delivery Time:
- 20 Days
- Transportation:
- Ocean, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Guangdong, China (Mainland) |
|---|---|
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | CE,FCC |
| Transportation: | Ocean,Air |
P16 outdoor flexible led display
Feature and Advantage:
1.High Contrast:4000:1,which is a very high level to ensure a vivid image of our LED display screen system..
2.For this type,it is the best seller product,we can provide you a competitive price.
3.First-class LED chip: Supplied by COTCO/CREE/AXT/SILAN/TAI WAN led lamps to ensure the long lift-time and high brightness of our LED display screen system.
4.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED display screen's investment.
5.Easy Installation & Using: easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display screen system.
Application:

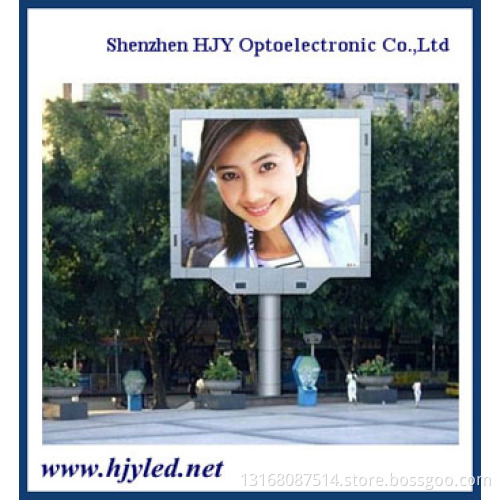

Outdoor full color LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc. Place, with the specialty of damp-proof, wind-proof, sun-proof, static-proof, anti-freezing, water-proof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
Specification:
|
Description |
Technical parameter |
||
|
Unit module |
Module size |
256*128mm |
|
|
Pixel pitch |
16mm |
||
|
Pixel density |
3906dots/m2 |
||
|
Pixel configuration |
1R1G1B |
||
|
Pixel resolution |
W:16dots*H:8dots |
||
|
Cabinet |
Dimension |
1024mm*768mm*150mm |
|
|
Quantities of module |
24pcs |
||
|
Power supply |
5pcs |
||
|
Thermal discharge |
Fan*2pcs |
||
|
Total weight |
55kg |
||
|
Best viewing angle |
12-300m |
||
|
Temperature |
Storage: -35°C~+85°C |
||
|
Working: -35°C~+85°C |
|||
|
Remarks: cabinet size can changed, upon project need. |
|||
|
Power |
Working voltage |
AC220V/110V±10% |
|
|
Average power consumption |
250-480W |
||
|
Max. Power consumption |
≤560W/sqm |
||
|
Current |
≤20mA(single LED) |
||
|
Control system |
CPU |
Pentium4 or above |
|
|
Operating system |
WIN98/2000/NT/XPc |
||
|
Control method |
Synchronization |
||
|
Main technical parameter |
Driving device |
Static scanning |
|
|
Drive type |
Constant Current driver IC |
||
|
Refresh frequency |
≥400Hz |
||
|
Grey scale/colors |
256 levels of each color(R/G/B)/16.7M color |
||
|
Brightness of white balance |
More than 8000cd/sqm |
||
|
Brightness adjustment |
256 levels of each color(R/G/B)by software |
||
|
Operating ambient humidity |
10%--95% |
||
|
Video signal |
PAL/NTSC |
||
|
Control system |
DVI display card+full color controller card |
||
|
MTBF |
10,000hours |
||
|
Life span |
100,000hours |
||
|
Flatness |
Tolerance of interpixel ≤0.3mm |
||
|
Tolerance of modules clearance≤0.6mm |
|||
|
Power switch |
Automatic switch |
||
|
Display mode |
1024*768 |
||
|
Software |
LED media player |
||
