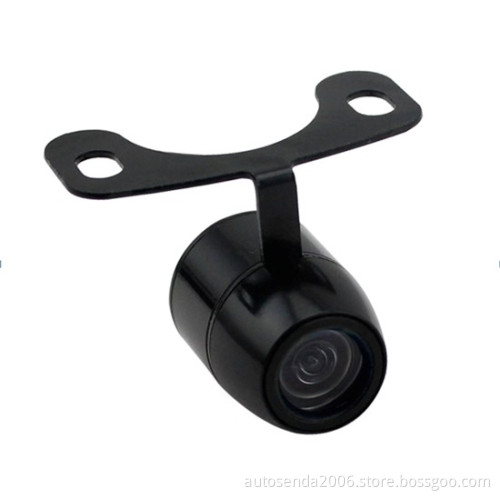

16.5MM Universal Camera with silver Mounting bracket

Special Features:

-High clear, waterproof, dust-proof,kirsite housing
-Angle: 170°
-Very small and easy to install
-Low illumination and fill light automatic
-Designed according to the license light hole install
-Link with DVD, vehicle GPS, monitor, as a part of rearview system
-All you need is a screen and video input port
-Original fitting by replacing the license light
-Work both day and night with auto fill light function
-All tested and packed carefully


Key Specifications:

Chip:PC1030
Sensor: CMOS sensor
Device type: Color CMOS
Optical size: 1/4 inches
Sensing area: 3.3 x 2.6mm
TV lines: 420
Output signal system: NTSC or PAL
effective Pixels:   PAL: 648*488    NTSC:648*488
Optical lenses:EF=1.8mm
Minimum illumination: 0.1 lux/F=1.2
Shutter: auto 1/60 to 1/5000s
Viewing angle: 170°
Waterproof: IP 68
Frames:60fps
Output signal type: CVBS
Output signal amplitude: 1Vp to p75Ω
S/N ratio: more than 50dB
Dynamic range: 60dB
Synchronous mode: inter-sync
Display direction: mirror or natural
Work voltage: 12V
Current consumption:Max 120mA
Power consumption: 0.84W
white balance:auto
Working temperatures:-20℃ to +75℃ Rh95% MAX
Storage temperature:-40℃ to +85℃ Rh95% MAX
