Forged 15w Cob Led Downlights
  • Forged 15w Cob Led Downlights
  • Forged 15w Cob Led Downlights
  • Forged 15w Cob Led Downlights
Forged 15w Cob Led Downlights
Forged 15w Cob Led Downlights
Forged 15w Cob Led Downlights

Forged 15w Cob Led Downlights

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description

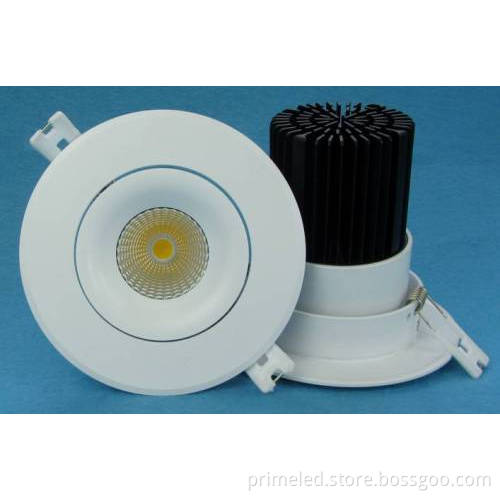

Forged 15W COB LED downlights

Forged A1070 aluminium as heatsink, with thermal conductivity of 286W/m.K, and 800-900LM output, the Forged 15W COB LED downlights are quite nice as repalcements of 60W halogens, to Save you 70% electricity bills and maintance costs,  in your exsiting downlights or spotlights fixtures.


Forged 15W COB LED downlights are quite welcomed as general lighting or spot lighting in shops, hotels, musuems and show rooms, or like that.


Features:

1. Forged A1070 aluminium as heatsink, about double thermal conductivity of die casting heatsinks, which  is best cooling solution of LED lightings;

2. COB LED as lighting source, with high efficiency;

3, USA Cree LED or Bridgelux LED, good quality with more output;

4. Special designed reflector leads to similar brightness to halogens;

5. Brand drivers/power supplies from top companies inthe market, to ensure outstanding and standing working of the lights;

6. Save you 70% electricity bills and maintance costs.


Size of Forged 15W COB LED downlights


Precision forged heat sinks offer several important advantages over their machined, die cast and extruded counterparts. The increased thermal performance coupled with the ability to expand the surface area without

increasing the size of the heat sink are unique advantages. These factors are especially critical when space is limited and/or weight reduction is critical to the product.


And also, precision forged heat sinks can often be manufactured at a lower cost because most operations can be performed in the tool and secondary operations are reduced.


More information of benifits of forging heatsinks, you are welcomed to refer to our FAQ.



Product Details:

Product Code

PDL-COB15X

Power Consumption

15W

Input Voltage

AC100~240V 50/60Hz

LED USA CREE/ Bridgelux

Light Output

800-900LM

Color

3000K/ 4000K/ 5000K

Cut out 90mm

Rendering Index

 > RA75-80

Beam Angle

 15°, 24°, 38° AND 60°

Operation Temperature

-20º~+50º

Fixturebody Temperature

40º~60º

Material

A1070 Aluminum

Expected Life

35,000Hours

Certifications

CE and RoHS


Quality Control:

All Prime LED lights after production completed will be under a testing and aging(keep lighting) of 24 hours at least, to ensure their reliability.

A final testing after the long hours testing and aging will be done before the packing, to ensure nothing in wrong and well-working in customer's end.

How to order samples?

1,Samples are available at your costs;

2,You tell us which items, color and quantity you want, 5pcs as MOQ;

3,We will issue a Performa invoice for the samples order;

4,Production will go, if we do not have the stocks, after your payment by TT /Western Union;

5.Lead time would be about 7-12days;

6,Samples will be sent out by DHL or UPS, as you like.

Our terms

1.Our Prices are onthe basis of EX-W, Shenzhen;

2.Payment by TT/Western Union, 30% deposit and balance before shipment, if orders is large;

3.Delivery by UPSor DHL, airline or ship if large cargos;

4.Lead time is8-15days, more or less;

5.Samples areavailable at your costs, 5pcs each as MOQ;

6. Two years Warranty.
