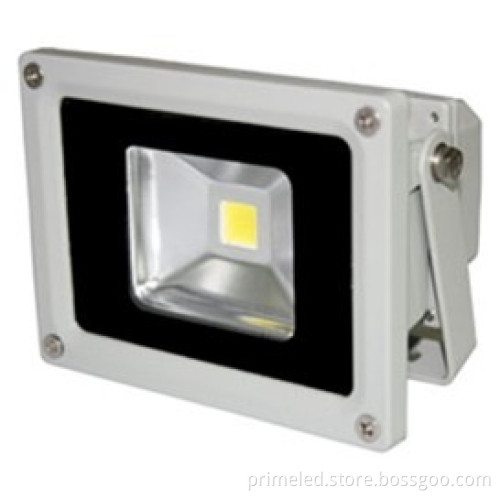

White or warm white 10W LED Flood lighting
With high power surface mounted LED module, Bridgelux chips inside, White or warm white 10W LED Flood lighting is Super nice for flood lighting at hotel, clubs, gardens, shopping malls, advertisement boards, Parking lot etc, at low cost and longer lifespan.
Features:
How to order samples?
With high power surface mounted LED module, Bridgelux chips inside, White or warm white 10W LED Flood lighting is Super nice for flood lighting at hotel, clubs, gardens, shopping malls, advertisement boards, Parking lot etc, at low cost and longer lifespan.
Features:
1> High lumens: a 10W LED flood light can be equivalent of a 50W metal halide lamp;
2> Long range: Brightness can reach up to 10-15meters;
3> Quality material: Die casting aluminum as housing, is good for heat sinking,and protects all sections.
4> 120 degrees as beam angle;
5> IP65;
ISOCANDELA DIAGRAM of the 10W flood lights:
(ISOCANDELA DIAGRAM is a method of representing the photometric performance of a luminaire in all directions, not just in one plane as with a polar curve.)
ISOLUX DIAGRAM (For a given height, the manufacturer provides lines of constant illuminance (isolux) on a floor or working plane grid.)

Illunination of White or warm white 10W LED Flood lighting:

Technical Data:
2> Long range: Brightness can reach up to 10-15meters;
3> Quality material: Die casting aluminum as housing, is good for heat sinking,and protects all sections.
4> 120 degrees as beam angle;
5> IP65;
ISOCANDELA DIAGRAM of the 10W flood lights:
(ISOCANDELA DIAGRAM is a method of representing the photometric performance of a luminaire in all directions, not just in one plane as with a polar curve.)
ISOLUX DIAGRAM (For a given height, the manufacturer provides lines of constant illuminance (isolux) on a floor or working plane grid.)

Illunination of White or warm white 10W LED Flood lighting:

Technical Data:
Part No. |
PFL-10W/PFL-10WW |
Power |
10W |
Warm white |
3200K |
White |
5500K |
Cold white |
6500K |
LED type |
Bridgelux |
Lumens |
700LM |
Efficiency |
70LM /W |
Equivalent to |
50W metalhalide lamp |
Light Range |
10-15 meters |
Input |
AC85-265,50-60Hz |
Total HarmonicDistortion |
9% max. |
Power factor |
0.9 |
Powerefficiency |
85% |
Fixture efficiency |
91% |
Workingtemperatrue |
-40 to 55degrees Celsius |
Storage Tem. |
-25 to 65degrees Celsius |
QualityMaterial |
Die castingaluminum |
Housing Color |
Black orSilver-white |
IP rating |
IP65 |
Lifespan |
50,000Hs |
How to order samples?
1, Samples are available at your costs;
2, You tell us which items, color and quantity you want, 5pcs as MOQ;
3, I will issue a Performa invoice for the samples order;
4, Production will go, if we do not have the stocks, after your payment by TT / Western Union;
5, Samples will be sent out by DHL or UPS, as you like.
Warranty Terms:
1. Prime LED offers a warranty period of TWO years since the date cargos was shipped out;
2. Prime LED will take the duty, and send free replacements or parts, after our confirmation of the evidence we request, if failure occurs under normal and right application within the period;
3. Prime LED will offer you charged replacements or parts, if failure or damage due to incorrect operation or application.
