LCD Combo DVR is all in one DVR monitor with DVR and monitor both inserted. It is newly present DVR recorder system which is easy and convenient and more beautiful too.

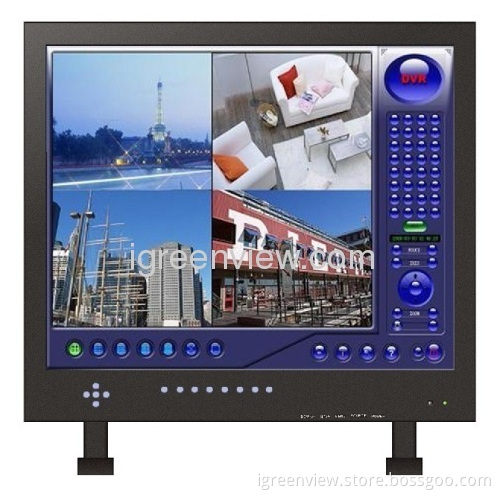

4 Channel 15.6′′LCD All-in-One DVR With Monitor

Detailed information

Technical characteristics:

● H.264 compression format.

● 4 CH D1 quality real time monitoring

● Support network and 3G network

● With 15.6 inches of LCD display screen

● Support USB mouse operation and remote control

● Structure characteristics:

● All metal chassis, anti-static, anti magnetic field, anti interference.

● Ultra thin design, novel and beautiful appearance, convenient installation, ultra-quiet cooling fan to good.

● Structure design for embedded ( combined curtain wall installation ), wall-mounted, hoisting, desktop support means mounted

● Power consumption characteristic

● Wide voltage range, and can be used in the 100VAC ~ 240VAC ( 50 / 60Hz ) normal work

● Energy saving and environmental protection and low energy consumption, low heat, suitable for long time of continuous work

Technical parameters:

Model	IGV-8004
Specifications and Model	15.6"LCD-DVR
Aspect Ratio	16:9
Diagonal screen size	15.6
Max Resolution	1366x768
LCD type	TFT-LCD
Brightness	250cd/m²
Contrast	350:1
Operating system	Embedded LINUX operating system
Input system	PAL/NTSC
System resource	At the same time multiplexed video, and video playback, video and network operation, backup
Video mode and the priority	Manual>alarm>Dynamic detection>Timing
Flow control code	Support dual code ,Variable flow / Fixed flow code optional
Audio compression	G.711
Audio compression	Support 4 playback
Monitoring and control of image quality	D1
Replay image quality	1CH D1, 3 CH CIF
Coding capacity	PAL:100fps,NTSC:120fps
Image motion detection	No picture can be arranged ( 22 * 18) a monitoring area, can set up a multi-level sensitivity
The video recording preservation / backup mode	The machine hard disk / network / USB
The video signal input	BNC*4
The video signal output	BNC*1
The input audio signal	RCA*4
The audio signal output	BNC*1
Alarm input	2
Alarm output	1
Alarm relay	30V DC2A,125V AC 1A
Tilt control	1 485 18 mainstream PTZ protocol support
USB interface	USB * 2 ( * 1 front panel, the back terminal board * 1 )
Network interface	RJ45 10M/100M Adaptive Ethernet port
Support the hard drive	*SATA1**
Network control	IE/PPPoE/DDNS
Power supply	DC12V
Power Consume(MAX)	< 60W
Working environment temperature	0℃-40℃
Work environment relative humidity	20%-90%
Shell material	Cold rolled steel, spraying the surface black
Weight	5KG
Installation mode	Embedded ( combined curtain wall installation ), wall-mounted, hoisting, desktop support mode
