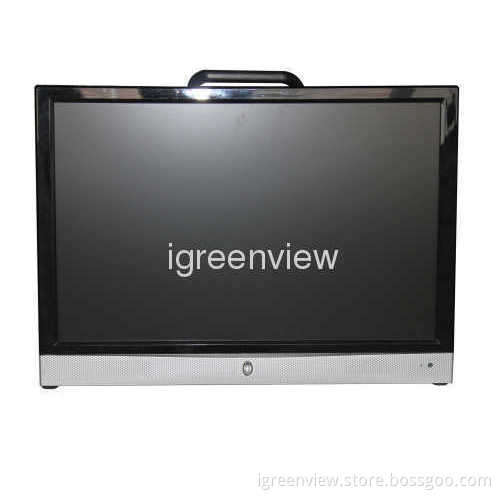

8 Channel 19′′lcd All-in-one Dvr With Monitor(metal Case)

19"TFT-LCD All-in-One DVR(METAL CASE)

● 8CH H. 264 triplex real time economical DVR.
● Support USB mouse.

● Backup file supports windows media player.
● Support 3G mobile phone surveillance and E-mail function.

● Support network file share function.
● Support 4 CH simultaneous playback.

● Support dual coding stream.

Specification
Display Size	19"
Active Area	376mm(W)*309mm(H)
Aspect Ratio	4:03
LCD ModuleTFT-LCD	TFT-LCD
/Max Resolution	1028*1024
Displa color	16.7M
Brightness(nits)	300cd / m2
Brightness	500:1
ViewAngle	85°/85°/85°/85°
Response Time	8ms
Vertically ScanFrequency	50HZ\60HZ\70HZ\
Built-in Windows system	LINUX
Video input system	PAL / NTSC
Playback	1*D1, 3*CIF( or 1*D1, 7*CIF)
Composite video lnput	4 channel (BNC*4,up to 8)
Composite video out	1 channel (BNC*1)
Audio Input	1(RCA*4,up to 8)
Audio Output	1(RCA*1)
RJ45 net lnput	1
USB backup port (surpport mouse)	2, surpport up to 320G
Alarm input	2
Alarm output	1
485 Input	1
SATA HDD surport:	2, up to 2T
code	PAL:100fps,NTSC:120fps
IE control and DDNS function	IE/PPPoE/DDNS
OSD Language	Chinese/English/French/German/ Italian /Spanish/ Portuguese / Dutch/ Poland
Power requirement	DC 12V/6A
PowerConsume(Max)	≤60W
Product Size	<1W
Productsize
Accessories	Manual,Power cable,remote control, wall braket

All-in-One DVR
