1 Channel Passive Cctv Camera Utp Video Balun With Audio
  • 1 Channel Passive Cctv Camera Utp Video Balun With Audio
  • 1 Channel Passive Cctv Camera Utp Video Balun With Audio
1 Channel Passive Cctv Camera Utp Video Balun With Audio
1 Channel Passive Cctv Camera Utp Video Balun With Audio

1 Channel Passive Cctv Camera Utp Video Balun With Audio

Get Latest Price
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
1 Channel Passive CCTV Camera UTP Video Balun With Audio Features:

● CCTV video balun
● 1 Channel UTP Video Balun
● With audio
● 12V DC
● transmission and receiver (audio)
● connect CAT-5 cable to transmit power, audio and video

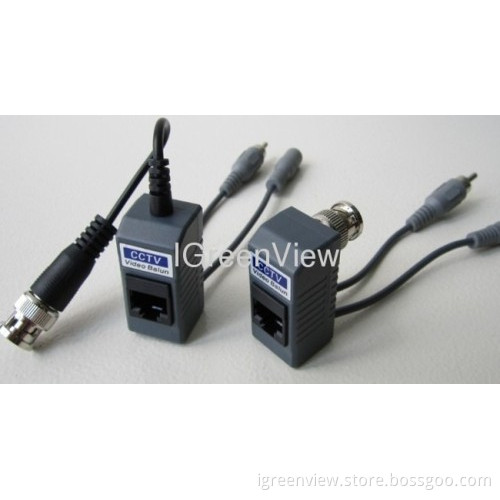

1 Channel Passive CCTV Camera UTP Video Balun With Audio Picture:


1 Channel Passive CCTV Camera UTP Video Balun With Audio Specifications:
Model IGV-UTP01B & IGV-UTP01C
Spec
1CH Passiv Power/Video
/DATE PVD Video Transceiver
Video
Frequency respons: DC-6Mhz Common-mode/Differential-mode Rejection: 15khz –6Mhz 60dB typ 60dB typ
Audio/data YES
Power NO
Impedance Coax,male BNC:75ΩUTP(Screwless)Terminal Block or UTP RJ45 Data Connector:100Ω
Wire type One Unshielded Twisted Pair 24-16AWG(0.5-1.31mm) Per video signal:DC Loop Resistance 52 ohms per 1,000 ft(18 ohms per 100m)
Surge suppression
Control NO
UTP Port RJ45
Dimensions(mm) 43*20*2.1
Weigth(g) 35
Environment Temperature:-10~+50°C Humidity:0~95%

Product Combinations:
Passive to Active Product Combinations (0-300M)
Transmit/Camera End
Power Supply
Receive/Monitor End
Power Supply
MVT-P1
No required
MVT-P1
No required
MVT-01
MVT-01
MVT-V-PT
MVT-V-PR
MVT-S-P4/16
Passive to Active Product Combinations (0-800M)
Transmit/Camera End
Power Supply
Receive/Monitor End
Power Supply
MVT-P1
No required
MVT-V-AR
12VDC &24VAC
MVT-01
MVT-02R
MVT-V-PT
MVT-V-A8/16
110VAC or220VAC
MVT-008R/016R
Active to Active Product Combinations (0-1500m)
Transmit/Camera End
Power Supply
Receive/Monitor End
Power Supply
MVT-V-AT
12VDC &24VAC
MVT-V-AR
12VDC &24VAC
MVT-02T
MVT-02R
MVT-S-AT
12VDC
MVT-V-A8/16
110VAC or220VAC
MVT-008R/016R
