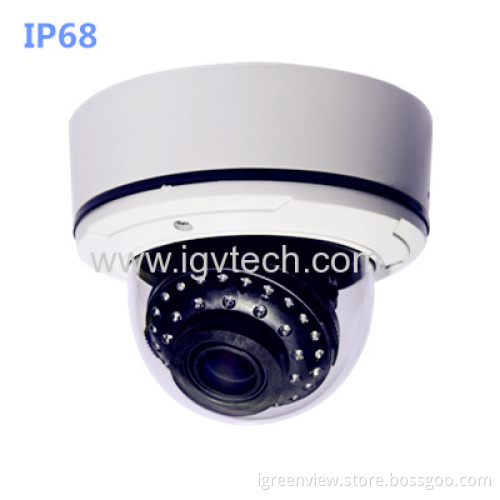

Ip68 Outdoor Vandal-proof Dome Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Order Model:

IGV-VD600EHR          1/3"SONY Super HAD CCD II + CP9H DSP             650tvl
IGV-VD600ESR          1/3"SONY Super HAD CCD II + CP10 DSP              650tvl
IGV-VD600EFR          1/3"SONY EXview HAD CCD II + Effio-E DSP          700tvl
IGV-VD600EPR          1/3'' SONY Double-Scan CCD + Effio-P DSP            700tvl

Feature:

• 1/3"Sony Color CCD Sensor 650TVL/ 700TVL Optional
• 4-Axis Structure
• Video Test Plug
• Lightning-proof +Static-free function
• 30pcs IR Led , IR Range:25-30M
• 4-9mm, 2.8-12mm manual/auto VF lens optiona
Δ Waterproof Rate: IP68
Δ Vandalproof Rate:1K 10

Picture:

Specification:

Model	IGV-VD600EHR	IGV-VD600ESR	IGV-VD600EFR	IGV-VD600EPR
Imaging Sensor	1/3"SONY Super HAD CCD II		1/3"SONY EXview HAD CCD II	1/3'' Sony Double-Scan CCD
Digital Signal Processor	CP9H DSP	CP10 DSP	Sony Effio-E 4140 DSP	Sony Effio-P 4129 DSP
Horizontal resolution	650TVL		700TVL	700TVL
Effective Pixels	PAL:752(H) x 582(V); NTSC: 768(H) x 494(V)		PAL: 976(H)×582(V); NTSC: 976(H)×494(V)
Signal System	PAL/ NTSC
IR Leds	35pcs ф5mm IR Leds
IR Distance	30-35M
Minimum Illumination	0 Lux When IR ON
Lens	4-9mm, 2.8-12mm manual/auto VF lens optional
Video Output	1.0Vp-p, 75 ohms
S/N Ratio	More than 50dB (AGC OFF)
OSD Menu	English, Simplified Chinese, Traditional Chinese, Korean, Japanese, Italian, Russian, Portuguese, Spanish, German, French		English, Chinese, Japanese, German, French, Russian, Portuguese, Spanish
Electronic Shutter	AUTO, 1/50(1/60) 1/100,000		1/50(1/60)1/10000
Day/Night	AUTO/COLOR/B&W/EX-CDS		AUTO/COLOR /B/W/EXT1/EXT2	AUTO/COLOR
White Balance	ATW/MANUAL/AWCPUSH/AWC		ATW/Push/User1/User2 /Anti CR/Manual/Push Lock
Backlight Compensation	AUTO/MANUAL		OFF/BLC/HLC	HLC/BLC
Motion Detection	4 Areas
Privacy Mask	8 Areas		4 Areas	15 Areas
Mirror	OFF/ON			OFF / V-FLIP /H-FLIP/HV-FLIP
Wide Dynamic Range	D-WDR		ATR	Super WDR
Digital Noise Reduction	2D DNR	3D DNR	2D DNR	3D DNR
Sense-up	—	YES	—
RS-485	Optional		—
Smart IR	YES
Operation Temperature	-20 °C ~ + 50 °C
Dimension	150.4 mm(Ф)* 122.9mm(H)
Guarantee	2 years
Power Supply	DC12V, DC12V/AC24V optional
Package	12PCs/CTN, 684542CM, 17.6KGs

Dimension:
