Mini Ip Ir Bullet Camera With Low-lux

Features:
•  H.264 compression format, MJPEG/JPEG Baseline
•  1.3 Megapixel Resolution,Support 1280*960 & 720P(1280*720)
•  Dual Stream, resolution, bit rate adjustable
•  3.6 mm Mega Pixel Fixed Lens included
•  Built-in IR-CUT, auto-switch day and night, IR Range 15 m
•  Motion detection recording , alert with snapshots via email
•  Build-in Privacy Mask , image snapshot , Title OSD , DDNS
•  Support RTSP Compatible with VLC Media Player
•  Onvif Compliant, Support NVR from Milestone/Axxon/NUUO/geovision/synology/Hikvision/Dahua/Kodak
•  Support IE6.0~8.0, Firefox, Google chrome browser
•  Support up to 10 users online simultaneously
•  IP66 Rated Waterproof & Vandalproof, Outdoor Use
•  Free CMS Software, paid Software for optional
* Paid Software function: Face Detection, Missing/Abandoned Object Detection etc.
* Support P2P and PnP function for optional

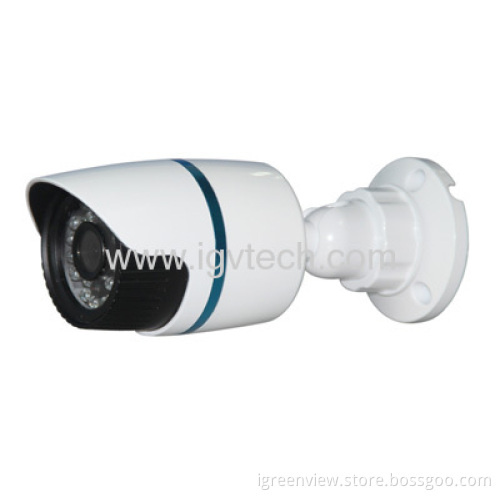

Picture:




Specification :

Model		IGV-IP306
Hardware
Sensor		1/3" Progressive Scan CMOS APTINA AR0130
Effective Pixels		1280(H)×960(V)
Min.Illumination		0.1lux
Day/Night		Auto,dual IR-Cut filter
IR LED		Φ5 24pcs IR Leds  IR Range 15 m (140 feet)
Max S/N Ratio		39dB
Electronic Shutter		Rolling Shutter
Interfaces
Optical lens	Interface	Board Mount M12.5 (Interchangeable Lens)
	Lens	Fixed Iris, Manual Focus
	Focal Length	Fixed Focal, 3.6 mm / F1.8
	H View Angle	62.2°
Storage Interface		Micro TF Card supports video storage andimage snapping;
		TF Card slot for optional, upto 32G
Network Interface	Lan	10/100M BASE-TX,RJ-45 connector
Audio video encoding
Video Compression		H.264 Main Profile; MJPEG/JPEG Baseline
Resolution	Main Stream	HD 1280*96025fps / 720P (1280*720)25fps
	Sub Stream	VGA 640*36025FPS /116*11225FPS
Video Bitrate		32Kbps4Mbps,SupportsCBR/VBR
Title OSD		Supports channel name, date, and videostream information overlay;
		OSD location is adjustable
Privacy Mask		4 configurable regions
Image Orientation		image flip and mirror
Auto Image Control Functions		Auto Exposure Control (AEC); AutoWhite Balance (AWB); Auto Band Filter (ABF)
		Auto Black Level Calibration (ABLC)
Image Controls		Color saturation, hue, gamma, sharpness(edge enhancement), lens correction,
		defective pixel canceling, and noisecanceling
Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record by motiontrigger,alarm trigger, manual, or schedule
Alarm Output		E-mail, Explorer, Software
Network protocol		TCP/IP\RTSP\RTCP\HTTP\DNS\DDNS\DHCP\FTP
ONVIF protocols		Support 2.0 version
Remote View	PC	IE 6.0~8.0 , Firefox , Chrome ;max 10 users
	Mobile Phone	iPhone, ipad, Android
General Parameters
Environmental Casing		Waterproof (IP66 Rated), Outdoor Use
Installation		Brackets Included, Wall Mount
Operating Temperature		-20 °C ~ 50 °C (-4 °F ~ 122 °F) forDC 12V
Operating Humidity		0% -85% RH
Power		DC12V 1A
POE		POE Class 3 IEEE802.3af (optional)
Power Consumption		9 W(MAX)
Dimension		165 * Φ60mm(6.5" x Φ2.36")
Weight		0.37kg
Package Dimension		190*145*100 mm
Package Weight		0.67 kg
Approvals		CE / FCC / RoHS
