1080p Hd Ip Array Ir Camera



Features:
• Max resolution:1920×1080, output Real-time Full HD 1080P image
• 1/3" Progressive Scan Low Light CMOS
• 2D,3D smart noise reduction function, adapt to the static, moving scene
• 4 IR LEDs, IR distance 50m(max)
• Support 4 area privacy mask
• Excellent low light performance, Min.Illumination: 0.01Lux@(F1.2 )
• Support Color/BW mode converting (dual IR-Cut filter)
• H.264/MJEG is optional, dual streaming, low bandwidth, and high quality.
• Support Micro SD card storage; SD2.0 standard, maximum storage 32G
• Support motion detection, network fault detection and alarm video, image snapping
• Built-in Web server enables the use of a standard Web browser for viewing and management.
• Support ONVIF protocol

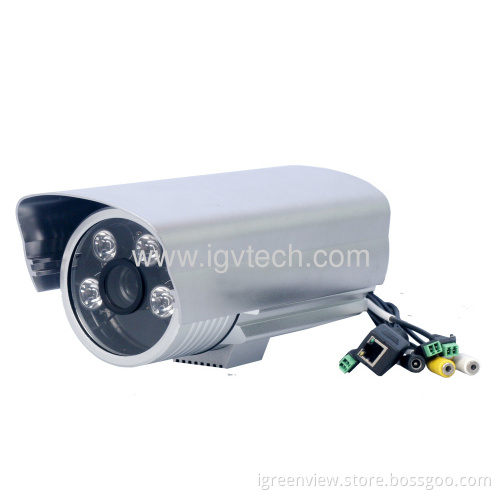

Picture:


Specification:

Model		IGV-IP404HD-L6	IGV-IP404HD-L8	IGV-IP404HD-L12
Hardware
SOC		Hi3516
Sensor		1/3" Progressive Scan Low Ligth CMOS
Effective Pixels		1920(H)×1080(V)
Min.Illumination		Color Mode:0.05Lux, B/W Mode:0.01 Lux
S/N		≥50db(AGC OFF)
Day/night		Auto,with ICR
IRParameters		4IR LEDs	4IR LEDs	4IR LEDs
		IR distance 20m	IR distance 30m	IR distance 50m
WDR		≥80dB
Interfaces
Optical lens	Interface	CS
	Lens	Fixed Aperture
	Focal	6mm	8mm	12mm
I/O		1-channel alarm input, Normally Open/NormallyClose modes adjustable
Storage Interface		Micro SD card supports video storage and imagesnapping; SD2.0 standard, maximum storage 32G
Network Interface		10/100M BASE-TX,RJ-45 connector
Audio video encoding
VideoCompression		H.264 High Profile
		MJPEG
Resolution	Master Streaming	1920*1080,1-25(30) fps/sec
		1280*960,1-25(30) fps/sec
		1280*720,1-25(30) fps/sec
	Second Streaming	640*480,1-25(30)fps/sec
		320*240,1-25(30)fps/sec
		160*112,1-25(30)fps/sec
Video Bitrate		32Kbps16Mbps,Supports CBR/VBR
Title OSD		Supports channel name, date, and video streaminformation overlay; OSD location is adjustable
Audio Compression		G.711A,G.711U,G.726
Data transmission and storage
Data storage		Video and Image
Recording		Recording set up to record by motion trigger,alarm trigger, manual, or schedule
Alarm Output		FTP.E-mail, Explorer, Software
Network protocol		TCP/IP.UDP.RTP.RTSP.RTCP.HTTP.DNS.DDNS.DHCP.FTP.NTP.PPPOE.SMTP.UPNP
ONVIF protocol		Support
Remote View		IE 6.0 or up, max 16 users
General Parameters
Operating Temperature		-10℃ - +55℃
Operating Humidity		0% - 90%
Power		DC12V
Power Consumption		15W(MAX)
Dimension		257(L) *122(W)*120(H)mm
Weight		1.8KG
