Waterproof Ir Camera With Auto Icr

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

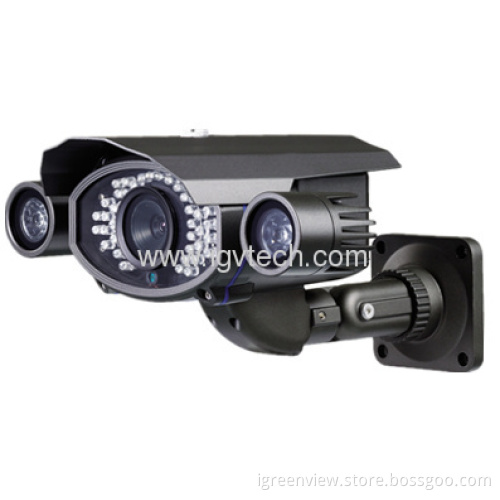

Product Name:1/3" Sony CCD Waterproof Camera

1,1/3" Sony Super HAD CCD Waterproof Camera
2,with 4-9mm manual varifocal lens;
3 Axis bracket with cable built-in bracket;
4,IR Led: Φ5×48Pcs;
5,IR Distance:40-50M ;
6,OSD menu, Auto ICR, IP67

Picture:

Specification:

Model	IGV-IR18MR	IGV-IR18HR	IGV-IR18EFR
Pick-up device	1/3'' SONY CCD
Effective pixels	NTSC:510x492,PAL:500x582	NTSC:768x494,PAL:752x582
*Resolution*	420TVL	540TVL	600TVL
Min.illumination	0Lux(IR ON)
Sync system	Internal
Scan system	2:1 Interlace
Pattern	PAL, NTSC
S/N ratio	more than 48dB		more than 50dB
Lens	4-9mm manual lens(4-9mm Korean manual/4-9mm Korean DC ICR /3.6-16mm Korean manual /3.6-16mm Korean DC ICR/5-50mm Korean manual /5-50mm Korean DC ICR lens optional)
Electronic shutter	AUTO/OFF		Auto/Anti-flicker/Manual
WDR	-		OFF/ON(0-63 level adjustable)
BLC	-		HLC/BLC/OFF
White balance	AUTO		ATW1/ATW2/MANUAL/FIXED
DNR	-		2D:ON/OFF
Day&Night	AUTO		Auto/B/W/Color/EXT
Motion detection	-		Off/On(4 areas)
Privacy zones	-		Off/On(8 areas)
Mirror	-		Off/On(horizontal mirror)
Image adjustment	-		Contrast/Sharpness/Saturation
AGC	-		High/Middle/Low/Off
Gamma	-		0.45/Custom(0.05-1.0)
OSD menu	-		Simplified Chinese/English
IR distance	40-50m(IR leds: 48×Φ5)
Other function	Constant current IR Leds PCB board, brightness of IR leds adjustable, Zoom and Focus adjustable outside,lightning-proof,Cable bracket included,IP67
Video output	1.0Vp-p Composite Video Output, 75 Ohm
Power supply	DC12V
Power consumption(Max)	800mA/DC12V(IR ON)
Operation temp	-20°C ~ 50°C
