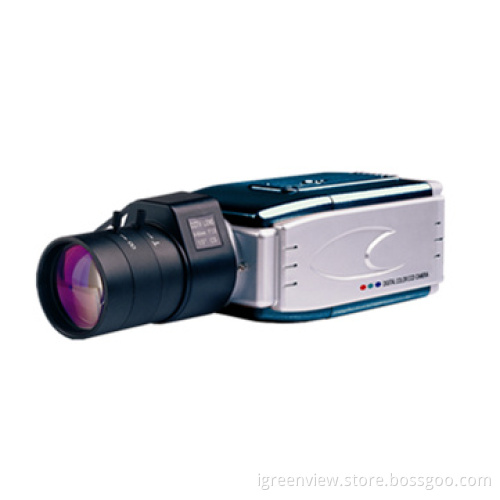

1/3 Sony Ss3 High Resolution 540tvl Wdr Camera With Osd Menu Control
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
WDR cameras (IGV-WDR100) Feature:
● 1/3 SONY SS3 high resolution 540TVL WDR Camera
● Excellent Ultra WDR Performance
● Minimal blooming and vertical smearless, under the strong backlight
● OSD setup
● Digital Noise Reduction(DNR)
● Color/B/W switch
● Natural color reproduction and excellent image quality
WDR cameras (IGV-WDR100) Picture:
● Excellent Ultra WDR Performance
● Minimal blooming and vertical smearless, under the strong backlight
● OSD setup
● Digital Noise Reduction(DNR)
● Color/B/W switch
● Natural color reproduction and excellent image quality
WDR cameras (IGV-WDR100) Picture:
WDR cameras (IGV-WDR100) Specification:
Models |
IGV-WDR100 |
Image Sensor: |
1/3 Sony Double Speed CCD |
Pixels |
PAL: 720 (H) × 540 (V) |
Signal System |
PAL / NTSC |
Horizontal Resolution: |
540 TVL |
Dynamic Range |
101dB Max 120dB/ 17 Bit |
Control |
OSD menu |
Minimum illumination |
Color : 0.6 Lux(F1.2); Slow Shutter : 0.08Lux(F1.2) |
synchronous system |
in sync |
shutter speed |
1 / 50 (1 / 60) --1/100, 000 (seconds) |
S/N Ratio |
More than 50dB |
Gain Control |
Low/ Medium /High /Custom |
White Balance |
2000Kto 11,000K |
color to black |
color |
Video Output |
1.0-1.2vp(Composiste Video Output ,),75Ohm Terminated |
Lens Mount |
C/CS Mount |
Sync.System |
adjustable |
video output |
1.0Vp-p, 75Ω (BNC) |
Power |
12V DC /24V AC |
Power consumption |
2W/3W |
Jack |
VIDEO OUT (BNC) |
Dimension |
121(L)×65(W)×62(H )mm 500 |
