UFO Flying Saucer Camera IGV-MINI62 Features:

● Indoor UFO Camera 420-700TVL Optional
● SONY/SHARP CCD optional

● 3.7mm pin-hole lens
● BLC/AWB function

● Suitable to install in the Lift and the corridor, etc

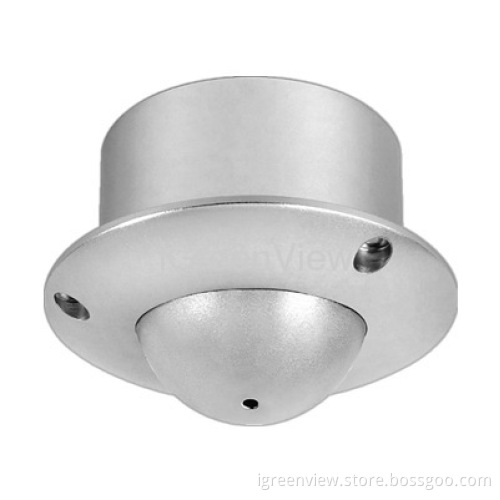

UFO Flying Saucer Camera IGV-MINI62 Picture:

UFO Flying Saucer Camera IGV-MINI62 Specification:

Module

IGV-MINI62SLR

IGV-MINI62SNR

IGV-MINI62DAP

IGV-MINI62HR

IGV-MINI62EXR

IGV-MINI62EFP

Image Sensor

1/4" Color SHARP CCD

1/3" Color SONY Super HAD CCD

1/3" Color i-View Tech Sensor

1/3" Color SONY Super HADⅡ CCD

1/3" Color SONY Super HADⅡ CCD

Signal System

PAL/NTSC

Effective Pixels

PAL:500(H)×582(V)

PAL:752(H)×582(V)

PAL:976(H)×582(V)

NTSC:510(H)×492(V)

NTSC:768(H)×494(V)

NTSC:976(H)×494(V)

Resolution

420TVL

600TVL

700TVL

DAC

12Bit

9Bit

10Bit

12Bit

Minimum Illumination

0.5LUX/F1.2

0.1LUX/F1.2

0.1LUX/F1.2

S/N Ratio (Y signal)

Over 48dB

Over 58dB

Electronic Shutter Speed

1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)

WDR

-

-

-

D-WDR

D-WDR

D-WDR

DNR

-

-

-

2D-DNR

3D-DNR

2D-DNR

OSD

-

-

-

OSD

OSD

OSD

White Balance

Auto White Balance

Auto White Balance/Manual White Balance/Auto Tracking White Balance

Gain Control

AUTO

Auto/Manual/Off

Backlight Compensation

ON

ON/OFF

Gamma Correction

0.45

Synchronization

Internal

Video Output

1.0Vp-p, 75Ω

Power Source

DC12V (9V ~ 15V)

Operating Temp.

-20℃~60℃ / 10% ~ 95%RH

Send your message to this supplier

* From:
* To:

Ms. Juliet
* Messages:

Enter between 20 to 4,000 characters.

Related Keywords

Flying Saucer , Pin Hole , Pin Hole Camera , Cameras , Cup Saucer , Cup With Saucer

Module	IGV-MINI62SLR	IGV-MINI62SNR		IGV-MINI62DAP	IGV-MINI62HR	IGV-MINI62EXR	IGV-MINI62EFP
Image Sensor	1/4" Color SHARP CCD	1/3" Color SONY Super HAD CCD		1/3" Color i-View Tech Sensor	1/3" Color SONY Super HADⅡ CCD		1/3" Color SONY Super HADⅡ CCD
Signal System	PAL/NTSC
Effective Pixels	PAL:500(H)×582(V)			PAL:752(H)×582(V)			PAL:976(H)×582(V)
	NTSC:510(H)×492(V)			NTSC:768(H)×494(V)			NTSC:976(H)×494(V)
Resolution	420TVL			600TVL			700TVL
DAC	12Bit		9Bit	10Bit			12Bit
Minimum Illumination	0.5LUX/F1.2		0.1LUX/F1.2	0.1LUX/F1.2
S/N Ratio (Y signal)	Over 48dB			Over 58dB
Electronic Shutter Speed	1/50-1/60, 000sec.(PAL), 1/60-1/60, 000sec.(NTSC)
WDR	-		-	-	D-WDR	D-WDR	D-WDR
DNR	-		-	-	2D-DNR	3D-DNR	2D-DNR
OSD	-		-	-	OSD	OSD	OSD
White Balance	Auto White Balance			Auto White Balance/Manual White Balance/Auto Tracking White Balance
Gain Control	AUTO			Auto/Manual/Off
Backlight Compensation	ON			ON/OFF
Gamma Correction	0.45
Synchronization	Internal
Video Output	1.0Vp-p, 75Ω
Power Source	DC12V (9V ~ 15V)
Operating Temp.	-20℃~60℃ / 10% ~ 95%RH
