700tvl Mini Bullet Camera With 3.7mm Pinhole Lens

700tvl Mini Bullet Camera With 3.7mm Pinhole Lens

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

700TVL Mini Bullet Camera (IGV-MINI51) Main Features:

● CCTV Camera, high sensitive, steady and high clear image quality CCD Camera

● Newest AGC circuitry processing technique, electronic shutter, white balance, backlight compensation and many function CCTV Camera

● Widely used for ATM, jewelry shop, finance room and many short distance important indoor conditions

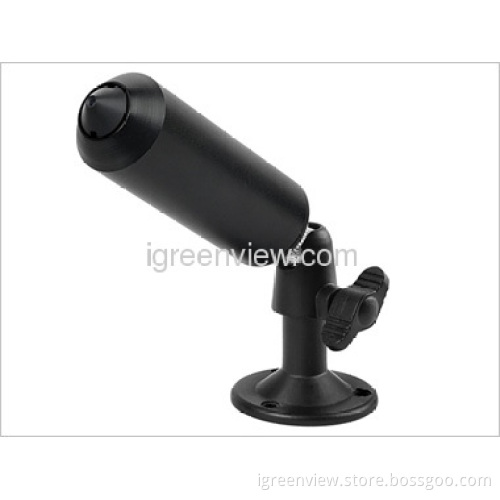

700TVL Mini Bullet Camera (IGV-MINI51) Picture:

Specification:

Camera type

bullet camera

Item No.

IGV-MINI51EFR

Image Sensor

1/3 Sony 960H CCD Sensor

H. Resolution

700TV Lines

System of Signal

NTSC/PAL

Effective Pixels

PAL system:976H×582V 570K
NTSC system: 976H×494V 480K

lens

3.7mm pinhole lens

Sync. System

Internal / Line-Lock(Analog,Digital)

S/N Ratio

More than 48dB

Video Out

1.0Vp-p/75Ω

Auto Gain Control

0.25/0.50/0.75/1.00 can be choosen,highest is 55dB

Backlight compensation

HLC or BLC

Electric Shutter

1/50(1/60) - 1/100000 per second

Exposure

electron exposure

Min. Illumination

0.01LUX/F1.2

White Balance

Open/close can be choosen

GAMMA

0.45/1.0

humidity

0%~96%

Operating temperature

-20°C--60°C

Power supply

DC12V±5%
