White-Light LED Camera (IGV-WL14)
Main Feature:

Colorful Image in Night vision
Fixed Lens 4/6/8/12/16/25mm option
1Pc White-light LED,IR distance 50M
Waterproof standard IP66

White-Light LED Camera (IGV-WL14)Specification:
Model
IGV-WL14EFR
IGV-WL14HR
IGV-WL14MR
Pickup Device
1/3" SONY Super HAD CCD II
Picture Pixels
PAL: 752(H) X 582(V)
PAL: 752(H) X 582(V)
PAL: 500(H) X 582(V)
NTSC: 768(H) X 494(V)
NTSC: 768(H) X 494(V)
NTSC: 512(H) X 492(V)
Scanning Area
4.8mm(H) X 3.6mm(V)
Horizontal Resolution
700TVL
540TVL
480TVL
Signal System
PAL/NTSC
Minimum Illumination
0 Lux (LED ON)
S/N Ratio
>48 dB
Gamma Collection
0.45
Electronic Shutter
PAL:1/50-1/100000 sec NTSC: 1/60-1/100000 sec
Gain Control
Auto
Back Light
Compensation
Auto
White Balance
Auto
Protection Rate
IP 66
Sync System
Internal Synchronization
Operation Temperature
-20℃~50℃
Lens Size
Big fixed lens:4/6/8/12/16mm option
Power In
DC12V,2A
Video Output
1.0Vp-p/75Ω(BNC)
Dimension
240*140*65mm
Weight
680g

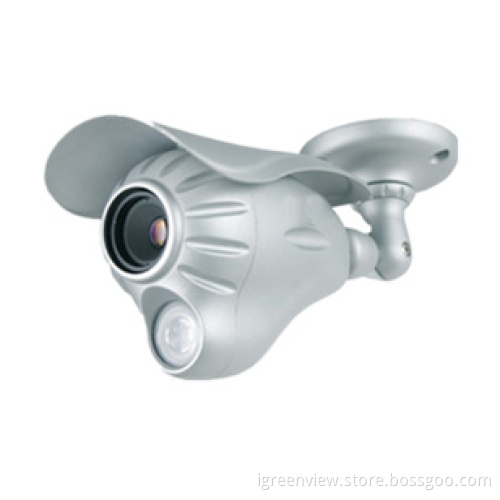

White-light LED cameras (IGV-WL14) Picture :
