Vandalproof Dome Camera With Pixim 1/3″dps(digital Pixel System)

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Product Name:PIXIM Seawolf Vandalproof Camera

● 1/3" WDR Pixim Seawolf Sensor,690TVL

● Min.illumination:0 Lux (IR On)

● Super WDR:102dB typical,120dB Max

● Superior color rendition, efficient image compression, video rate adjustable, PAL/NTSC optional

● Internal/external sync, Freeze up, Electronic slow shutter, CRR, 3DNR,DSS,BLC, Mirror, Privacy zones, Motion detection(alarm image zoom in)

● 18Pcs IR Led, IR Distance:15-25M

● OSD menu, Vandalproof, Lightningproof

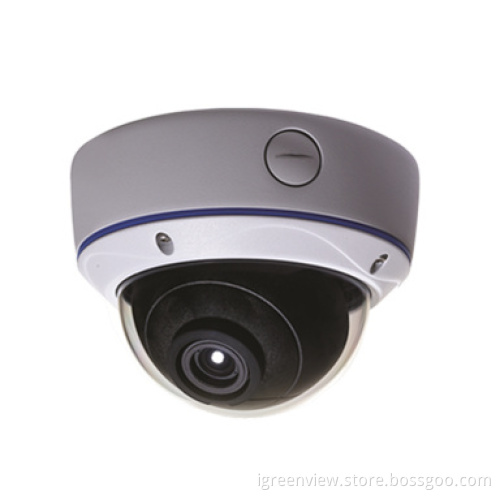

PIXIM Seawolf Camera Picture:

PIXIM Seawolf Camera Specification:

Model	IGV-VDPIXIM30
Pick-up device	*1/3" WDR Pixim Seawolf Sensor*
Effective pixels	758*540
Pattern	PAL/NTSC compatible(menu optional)
Pixel size	7um*7um
Sync system	Internal/External
H/V resolution	H690TVL/V460TVL
Min illumination	0 Lux(IR ON)
S/N ratio	more than 50dB(AGC OFF)
Lens	4-9mm Korean DC Lens(4-9mm Korean DC ICR/2.8-11mm korean DC/2.8-11mm korean DC ICR lens optional)
Electronic shutter	AUTO/OFF
WDR	*High/Middle/Low/Custom*
CRR	ON/OFF
BLC	ON/OFF
Exposure mode	ATM/Global/Normal/Lower1/3 /Manual
Electronic slow shutter	(64X/32X/16X/8X/4X/2X)/Off
Digital zoom	8 times
3D noise reduction	High/Low/Off
Mirror function	Horizontal/Vertical/Rotation/Off
Privacy zones	12 sets
Motion detection	4 sets
White balance	ATW/ATW PRO/PUSH LOCK/Manual
AGC	High/Middle/Low/Off
Image adjustment	Saturation/Sharpness
Image Freeze	On/Off
Day&Night	Auto/B/W/Color/EXT
Gamma	Adjustable
video rate	80-150
IR distance	10-15M(18xΦ5)
OSD menu	English/Chinese
Video output	1.0V p-p Composite Video Output, 75 Ohm
Power supply	DC12V+/-10% AC24V+/-10%
Power consumption(Max)	200mA/320mA(IR ON)
Operating temp	-20°C ~ 50°C
