16ch H.264 960h Standalone Cctv Security Network Dvr With Hdmi, Alarm, Support Mac Os, 3g Viewing
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
16 Channel 960H DVR IGV-2016L-960H Features:
●Preview:
PAL: 960×576@25fps(each ch,Frame);
NTSC: 960×480@30fps(each ch,Frame)
●Recording \ Playback:
PAL: CIF /HD1/D1/960H : 25fps(each ch)
NTSC: CIF /HD1/D1/960H :30fps(each ch)
● 960H real-time video image clearer;
● Support 16 channel real-time synchronous playback;
● support for a global network of plug-and-play;
● Support mobile phone monitoring, anytime, anywhere to view the scene;
● Support dual-stream transmission of all video channel network, support IE browser, network remote monitoring, remote setting management;
● Support HDMI 1080P output;
● support equipment remote upgrade
●Support Wireless IR Remote Control Extender
●Support MAC, IE, GOOGLE Chorm

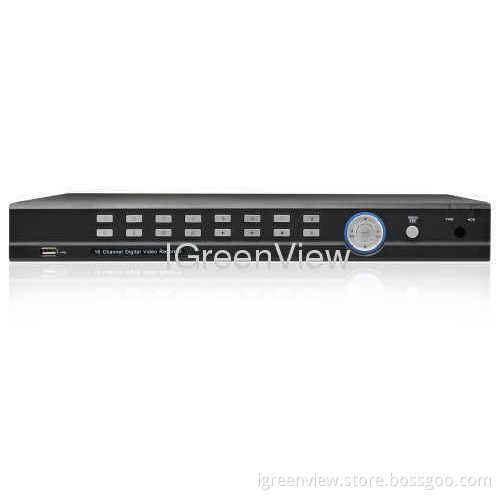

16 Channel 960H DVR IGV-2016L-960H Picture:
● Support 16 channel real-time synchronous playback;
● support for a global network of plug-and-play;
● Support mobile phone monitoring, anytime, anywhere to view the scene;
● Support dual-stream transmission of all video channel network, support IE browser, network remote monitoring, remote setting management;
● Support HDMI 1080P output;
● support equipment remote upgrade
●Support Wireless IR Remote Control Extender
●Support MAC, IE, GOOGLE Chorm
16 Channel 960H DVR IGV-2016L-960H Picture:
Specification:
Model |
IGV-2016L-960H |
|
Video Compression |
H.264 |
|
Video System |
PAL/NTSC |
|
Operation System |
Linux(embedded) |
|
Video-input /output |
16CH input /2CH output(BNC) |
|
Audio input /output |
16CH input /2CH output(BNC) |
|
Display |
resolution |
PAL:960×576@25fps(each ch,Frame) NTSC:960×480@30fps(each ch,Frame) |
feature |
single/ Quad/Nine/Sixteen/S.E.Q. |
|
Record (only record) |
resolution |
PAL :
D1 mode 360×288(CIF),720x288(HD1),720x576(D1)
960H mode 480×288(WCIF),960×288(WHD1),960×576(WD1) NTSC: D1 mode 360×240(CIF),720x240(HD1),720x480(D1)
960H mode 480×240(WCIF),960×240(WHD1),960×480(WD1) |
speed |
PAL: (each ch,Frame) D1mode/960Hmode:25fps NTSC: (each ch,Frame) D1mode/960Hmode:30fps |
|
Recording Mode |
Continuous/Manual/Motion detect /Sensor/Alarm recording |
|
Playback Channel |
1/4/9/16ch |
|
Playback speed(simultaneously 16CH Record ) |
PAL: (each ch,Frame) D1mode/960Hmode:25fps NTSC: (each ch,Frame) D1mode/960Hmode:30fps |
|
Sensor & Alarm I/O |
16ch sensor input 1 channel alarm out |
|
Network |
Lan, DHCP, Dynamic IP and DDNS |
|
HDD interface |
2 SATA HDDs, up to 4TB |
|
Multiplex Operation |
live display, record, playback, backup and network |
|
USB |
2xUSB(for mouse and backup/upgrade) |
|
PTZ Control |
Built in RS485, support Pelco-P & Pelco-D |
|
Mobile Surveillance |
Support Mobile Phones based on Windows mobile, Symbian, iPhone, Blackberry and Android operation system |
|
VGA |
800*600,1024*768,1280*1024,1440*900,1920*1080 |
|
HDMI |
1080P |
|
Power Supply |
DC 12V 5A |
|
Dimension(WxDxH) |
380x340x50mm |
|
