1.3 Megapixel 18x Zoom Ip Infrared Ptz Dome Camera

Megapixel IR IP PTZ Camera IGV-PTZ309 Features:
● 18x optical zoom IR IP Camera
● H.264 & MJPEG dual-stream encoding
● ) & 720P resolution
● WDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC
● Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
● Max 240°/s pan speed, 360° endless pan rotation
● Up to 255 presets, 5 auto scan, 8 tour, 5 pattern
● Built-in 7/2 alarm in/out
● Support intelligent 3D positioning with DH-SD protocol
● SD memory, IP66
● IR LEDs up to 100m

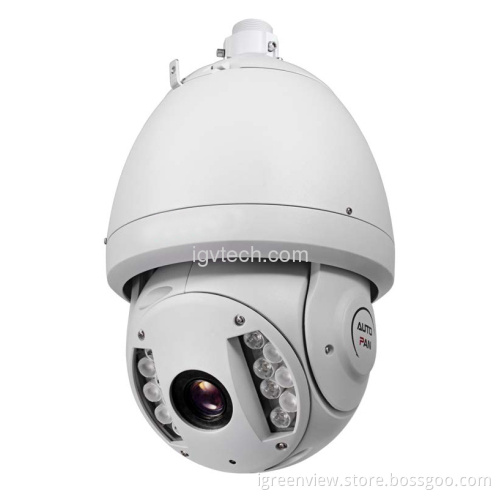

Megapixel IR IP PTZ Camera IGV-PTZ309 Picture:

Megapixel IR IP PTZ Camera IGV-PTZ309 Specification:

Image Sensor		1/3" CCD		1/3" CMOS	1/3" CCD
Effective Pixels		1280(H) x 960(V)
Electronic Shutter Speed		PAL:1/3~1/10000s      NTSC:1/4~1/10000s
Min. Illumination		Color: 0.1Lux/F1.6 B/W: 0.01Lux/F1.6		Color: 0.05Lux/F1.6 B/W: 0.005Lux/F1.6	Color: 0.5Lux/F1.6 B/W: 0.02Lux/F1.6
S/N Ratio		More than 50dB
Video Output		BNC(1.0Vp-p/75Ω), PAL / NTSC
Max. IR LEDs Length		100m
Day/Night		Auto(ICR) / Color / B/W
Backlight Compensation		BLC / HLC		BLC / HLC / WDR
White Balance		Auto, ATW, Indoor, Outdoor, Manual
Gain Control		Auto / Manual
Noise Reduction		2D / 3D
Privacy Masking		Up to 24 areas
Digital Zoom		16x		16x	12x
Lens
Focal Length		4.7mm ~ 84.6mm (18x Optical zoom)
Max Aperture		F1.6~F2.7		F1.6~F2.7	F1.6~F2.8
Focus Control		Auto / Manual / One shot
Angle of View		H: 55.2°~3.2°
Close Focus Distance		100mm(wide) ~ 1500mm(Tele)
Pan/Tilt Range		Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed		Pan: 0.1° ~160° /s; Tilt: 0.1° ~120° /s
Preset Speed		Pan: 240° /s; Tilt: 200° /s
Preset		80(DH-SD), 255(Pelco-P/D)
PTZ Mode		5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup		Human-oriented focal length/ speed adaptation
Power up Action		Auto restore to previous PTZ and lens status after power failure
Idle Motion		Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time Task		Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
Protocol		DH-SD, Pelco-P/D (Auto recognition)
Compression		H.264 / MJPEG
Resolution		1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate	Main Stream	1.3M(1~15fps), 720P(1 ~ 25/30fps)	1.3M(1~25/30fps), 720P(1 ~ 25/30fps)		1.3M(1~15fps), 720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate		H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps
Ethernet		RJ-45 (10/100Base-T)
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Ver. 2.0 conformance
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Memory Slot		Micro SD, Max 32GB
RS485		1
Alarm		7/2 channel In/Out
