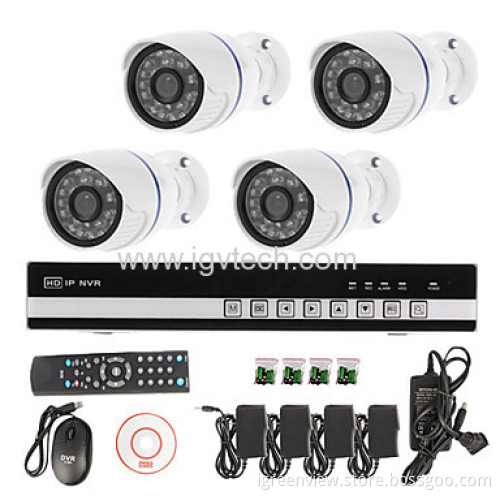

4ch Nvr Kit + 4pcs Plug&play 720p H.264 Bullet Ip Camera
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
720P HD IP Cameras Features:
• 4* 720P Cloud IP Camera
• 1/3" 1.0 MP CMOS Sensor
• Built-in P2P for remote PC and 3G Mobile Surveillance
• With P2P and Video Push Alarm
• High Resolution : 1280*720
4CH 720P NVR Features:
• Embedded Linux System
• H.264 Mian Profile@level 3 Compression
• 4CH 720P Recording simultaneously
• 4Ch 720P Playback simultaneously
• Supports Motion detection
• Suppports 1pcs HDD up to3TB
• Support onvif
• Support P2P,a key to the Internet
• Support iPhone/Android
..
Picture:
Specification:
System |
Model |
IGV-NVR204 |
Main processor |
High performance embedded microprocessor-20A |
|
Operating system |
Embedded LINUX OS |
|
Video spec |
Video compression format |
H.264 |
Display Image Resolution |
720P@30fps |
|
Playback Image Resolution |
720P@30fps |
|
Motion Detection |
can setup 192(16×12)pcs motion detection area |
|
each channeland multi-level sensitivity(1-6 levels adjustable) | ||
Privacy Masking |
Depends on ipc |
|
Audio spec |
Audio compression format |
adpcm |
Two-way audio |
1ch |
|
Recording |
Recording Mode |
Manual Recording, Motion Detection Recording, Time Recording, Alarm Recording, |
Recording storage |
HDD,Network |
|
Frame rate |
30 fps |
|
Recording Playback |
Max suport 4ch 720P |
|
Backup Mode |
Support HDD,USB Flash Disk store & backup |
|
Video |
Network Video Input |
4ch |
Video output |
1ch VGA and 1ch HDMI |
|
Audio |
Audio Input |
4ch IPC Composite Audio |
Audio Output |
1ch (audio intercom) |
|
Alarm |
Alarm Input |
4ch Alarm Input(optional) |
Alarm Output |
1ch Alarm Output(optional) |
|
Other |
Network |
1x10/100Mbps,RJ45 port |
RS485 |
Standard 485 port,support half-duplex, green terminal port |
|
USB |
2 USB 2.0 ports |
|
HDD |
support 1pcs 2TB SATA HDD inside |
|
Power |
DC +12V /3A |
|
Power consumption |
16W-18W(not include HDD and PoE) |
|
Operation temperature |
0℃-+55℃ |
|
Operation humidity |
10%-90% |
|
Demension |
252*213*42mm(0.8u height) |
|
Weight |
1.5--1.8KG(not include HDD) |
NVR Support IPC List:
