HD-SDI PTZ Camera IGV-SDI82-PTZ Main Features:
● Integrated structure,convenient and fast installation
● Integrated structure,convenient and fast installation
● Built-in heater and radiating system,4 alarms input, 1 alarm output as factory default,IP board is optional
● Signal System:1080p/25, 1080i/60 (30 PsF), 1080i/50 (25 PsF) 720p/60, 720p/50, 720p/30, 720p/25
● 128 presets(titles can be set), 4 tours; 8 programmable zones(titles can be set); 4 pattern, each record time is more than 180 seconds;4 scan, support camera scanning repeatly between right limit and left limit at an appointed speed.
● All-in-one, highly compact camera ideal for demanding applications such as video surveillance, public transportation, sports, videoconferencing and more
● Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for a period of time.
● Screen will display pan/ tilt position, zoom etc.
● IP66 all-day defend cover.
● Built-in TVS1500W lightning-proof, surge-proof and wave-proof.

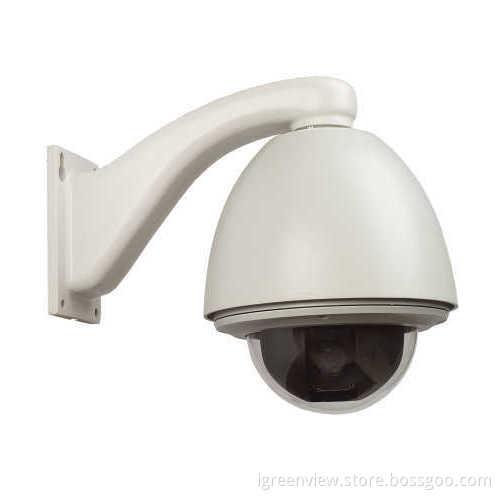

HD-SDI PTZ Camera IGV-SDI82-PTZ Picture:
HD-SDI PTZ Camera IGV-SDI82-PTZ Specification:
HD-SDI PTZ Camera IGV-SDI82-PTZ Picture:
HD-SDI PTZ Camera IGV-SDI82-PTZ Specification:
Model |
IGV-SDI82-PTZ |
Supported module |
Sony EX6300 |
Scanning system |
2:1 interlacing |
Effective Pixels |
Approximately 2 Megapixels |
Imaging element |
1/3" HD CMOS |
White balance |
Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Va por Lamp (Fix/Auto), One-push, Manual |
Back-compensation |
Off/auto |
Focus |
f=3.5 mm (wide) to70 mm (tele) |
Electron Shutter |
1/1 to 1/10,000 s, total 22 steps |
Privacy masking zones |
Yes, Spherical |
Manual speed |
Pan(0.5°~160°/s) |
Tilt(0.5°~90°/s) | |
Preset speed |
320°/s |
Rotation |
Continuously 360°;tilt 0~90° with auto-flip |
Speed Proportion |
As the length of focus, to auto-adjust the speed |
Preset |
128 preset, title can be edited |
Auto-flip |
Tilt down 90°, with auto-flip 180° |
Scan |
355°programmable ,4 scans |
Display zone |
8 programmable zones with titles |
Sync model |
Internal |
Decoder |
Built-in |
Video output |
Female BNC |
Remote controlling |
RS485 |
Baud rate (RS485) |
2400/4800/9600/19200 bps |
ID range |
1~254 |
Temperature |
-40℃~60℃ |
Humidity |
0~95%(No condensation) |
Protection grade |
IP66, 1500w lightning-proof, surge-proof, all-day defend cover |
Power supply |
AC 24V |
Power consumption |
50W |
IGreenView HD-SDI High Resolution Camera Series RELEASE ! Include IR Waterproof HD-SDI Camera, Dome HD-SDI Camera,Box HD-SDI Camera, HD-SDI PTZ Cameras etc. IGreenView HD-SDI Camera take Original Sony ,Apnasonic CMOS MegaPixel Chip, with Excellent Video Quality !
For detail products information,please feel free to contact IGreenView team !
