Basic Info

Product Description

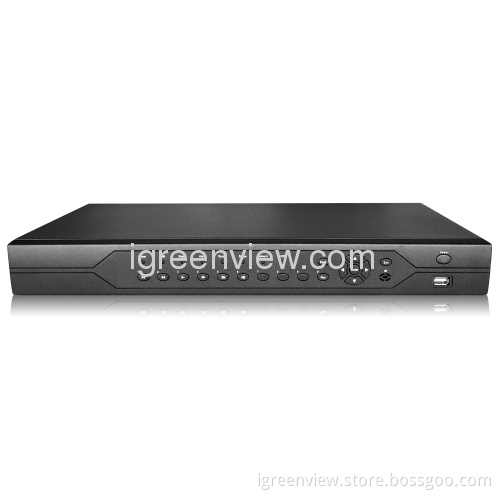

16 channels DVR
H.264 video compression

16 channels video inputs

Embedded Linux technology

Real-time monitoring for 4channels @ D1,12 channels@CIF

Audio: 8-ch input / RCA: 1-ch output

Alarm:8-ch sensor input / 1-ch alarm output

HDMI output optional

Support 2*2TB HDD

Operating system	Embedded LINUX
System resources	Pentaplex function:live,recording,playback,backup & remote access
Operating Interface	16-bit True Color human control system
Screen display	1/4/8/9/16
Video Standard	PAL(625 line,50 f/s);NTSC(525 line,60 f/s)
Monitoring quality	PAL,D1(704×576);NTSC,D1(704×480)
Playback quality	D1/CIF/QCIF
Total frame rate	D1:PAL 100/120fps;CIF:PAL 400/480fps
Video Input	16ch
Video Output	2 BNC, 1 VGA
Compression standard	G711A
Audio Input	8ch
Audio Output	1ch
Voice Intercom	Support
Video mode	Manual>Alarm>Video Detection>Continuous
Local playback	1/16ch
Video Query	Time/Date, Alarm, Motion Detection & exact search ( accurate to second)
Take up hard disk space	Space Occupation,CIF:5G/day·channel,D1:20G/day·channel
Video Save	Hard disk\SD Card\U Card\HDD\DVR-RW\Network (To prevail in kind)
Backup	SD Card\U Card\HDD\DVR-RW\Network (To prevail in kind)
Alarm Input	8ch
Alarm output	1ch
Network Interface	RJ45 10M/100M/1000M
PTZ Interface	1 RS485,1 RS232
USB Interface	2 USB portS
HDD Interface	2 SATA port ( Maximum 2T SATA HDD )
Automatic Switcher	NO
12V output	2 x 12V power output
Power supply	12V/4A
Power	<15W(without hard disk)
Operating Temperature	0℃-+55℃
Humidity	10%-90%
Dimensions	440(W)× 285(D)× 50(H) mm
Weight	5kg(without hard disk)

16 channels DVR
