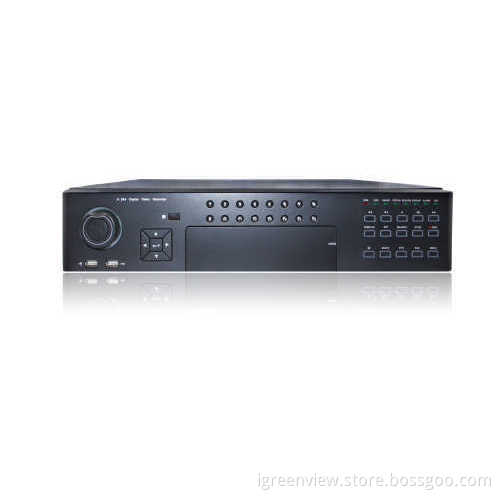

8 channel Full D1 DVR IGV-3108HDMI Main Features:

● H.264 video compression

● 8 channels video inputs

● Embedded Linux technology

● Real-time monitoring for all channels @ D1

● Audio: 8-ch input / BNC:1-ch output

● Alarm:8-ch sensor input / 4-ch alarm output

● Support 8*2TB HDD (2U)

TECHNOLOGY:
● H.264 video compression
● Embedded Linux technology
● ADPCM audio compression format
● Design for SATA HDD technology (HDD x 8/ 2U BOX)
● HEXAPLEX operation – Record, Live view, Playback, Backup, Network Control

VIDEO
● Real-time monitoring & recording for all channels @ D1
● 8 channels video inputs
● D1, HD1, CIF & QCIF video recording resolution adjustable
● Support Quad, Single channel, PIP & Auto Sequence display for live view

8 channel Full D1 DVR IGV-3108HDMI Specifications:

Video Compression		H.264
Video System		NTSC / PAL
Operation System		Linux
Input / Output	Video	Input: BNC: 8ch input Output: BNC 2ch output (1 Spot out) VGA Out HDMI Out(optional)
	Audio	Input: BNC 8ch Output: BNC 2ch
Display	Resolution	NTSC: D1(704 x 480) PAL: D1(704 x 576)
	Frame Rate	NTSC: 240fps / PAL: 200fps (shared by 8 cameras)
Record	Resolution	NTSC: CIF(352x240) / HD1(704x240) / D1(704x480)
		PAL: CIF(352x288) / HD1(704x288) / D1(704x576)
	Frame Rate (Adjustable)	NTSC:240fps-D1 / 240fps-HD1 / 240fps-CIF (shared by 8 cameras)
		PAL: 200fps-D1 / 200fps-HD1 / 200fps-CIF (shared by 8 cameras)
Display Modes		Single / Quad / 9 Channel / S.E.Q.
Record Modes		Motion Activated / Sensor Activated / Continuous / Time Schedule
Playback Modes		8 Channel, Quad and Single Channel
HDD	Interface	2* SATA HDD
	capability	*22T HDD / 82TB HDD (2U)*
Playback Search		Time & Date / Event List
USB Interface		USB 2.0 for Mouse and File Backup / Upgrade
PTZ Control		Built-in RS-485 / support PELCO-P & PELCO-D
Alarm I/O		8 CH Input / 1 CH Output
Network Interface		RJ45, 10M/100M
Network Protocol		Support TCP/IP, UDP,DHCP, DDNS, PPPOE,UPNP
Network Function		Support to live view with IE (Internet Explorer) , Safari & with Mobile phone
Backup		H.264 file via USB flash disk / USB CD/DVD-RW Drive & Network
Playback Mode		Normal Play / Fast Forward / Fast Rewind / Frame by Frame / Slow play
Recording Pack Time		15/30/45/60mins Adjustable
IR Remote Control		Included
Mouse		Included
Power Supply		DC12V / 5A
Operating Humidity		10%~90%
Working Temperature		10℃~+40℃
