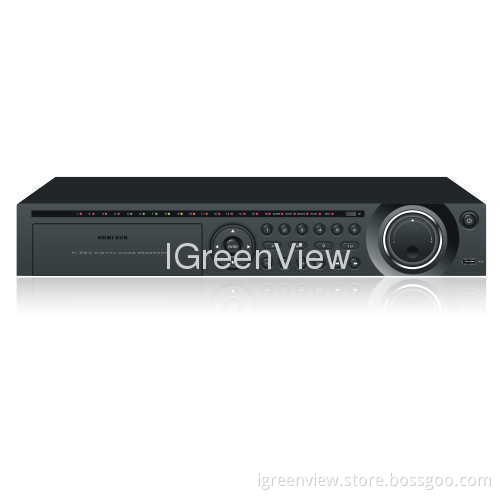

8Ch Network Video Recorder IGV-NVR208

Feature:

Embedded Linux OS

Standard H.264 compression

8 Ch. video input, 720P real-time recording

8 Ch. Alarm input and 4 Ch. Alarm output

Support HDMI, VGA, CVBS, SPOT output

Support mobile phone viewer (Windows Mobile/Symbian/iPhone/ Android/BlackBerry)

Embedded Web Server easy for remote monitoring.

4SATA interfaces, support up to 8 TB HDD

Support multiple DDNS (Oray, 3322, DynDNS)

iPTZ control by mouse and Controller

Two-way audio (Support BNC interface and 3.`5mm interface)

Specifications:

Main Processor	High Performance Embedded Microprocessor
Operation System	Embedded Linux OS
System Resource	Recording, Playback, Remote Access
Operation Interface	Mouse, Front Panel, Remote Control
Video Split	1 / 4 / 8 / 9 Split Display
Video Resolution	720P / D1 (Digital channels)
Video Playback Resolution	720P /D1 / HD1 / CIF / QCIF
Audio Compression	G.711
Recording Priority	Manual > Alarm > Motion Detection > Schedule
Local Playback	4 channel synchronous playback
Playback Search	Date, Time, Event, Channel
Video Storage	Local HDD / Network / USB / DVD-RW
Backup Mode	Network / USB / SATA / DVD-RW
IPC Input	8 channel
Video Output	1 channel BNC, 1 channel VGA (Up to 1920*1080/60Hz)
HDMI Output	1 channel (Up to 1920×1080)
Two-way audio Input	2 channel (1 channel BNC, 1 channel Phone Jack)
Audio Output	1 channel BNC
Alarm Input	8 channel
Alarm Output	4 channel relay output (30V DC 2A, 125V AC 1A)
Ethernet Interface	RJ45 100M/1000M Base-TX
PTZ Interface	1 x RS485
USB Interface	2 x USB2.0
HDD/SATA Interface	4 x SATA
Network Keyboard	Support
Power Supply	AC100V ~ 240V 50Hz/60Hz
Power Consumption	<20W (HDD not included)
Working Temperature	-10℃~ +55℃
Working Humidity	10%~90% RH
Atmosphere Pressure	86kpa~106kpa
Enclosure	1.5U
Dimensions	383(L) x 440(W) x 70(H)mm
Weight	5.1Kg (HDD not included)
Mounting	Rack Mount, Desktop Mount
