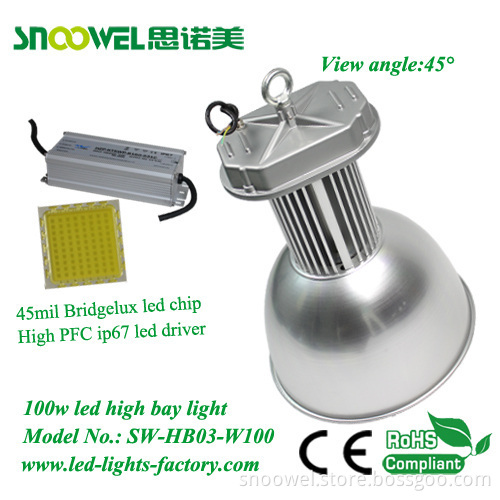

100w Led Hi Bay Lights For Factory,industrial
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Main Point:
Input voltage:AC85-265V,277V,305V is available
Led chip:45mil Bridgelux fm USA
LED Lumen:100-110Lm/W
Power supply: CE passed,and Meanwell is for option
IP grade:IP54
Beam angle:45,90 and 120degree
Shell color: grey and black
Warranty: 3 years
Technical datas of ths 100w led hi bay lighting:
Product Name |
10W Led Hi Bay Light |
||
Product Model |
SW-HB03-W100 |
||
Optical Parameters |
Electrical Parameters |
||
LED Chip Brand |
BridgeLux / Epistar |
Input Voltage |
AC 85-265v |
LED Chip Type |
COB |
Power Frequency |
50-60Hz |
LED Chip Quantity |
1PC |
Output Voltage |
DC 30~36V |
Color Temperature |
2700~7000K Optional |
Decline |
1% within 3000Hrs |
Fixture Efficiency |
≥85% |
Total Power Consumption |
100W |
Light Efficiency |
100-110lm/W |
LED Power Consumption |
115W |
Luminous Flux |
10000lm |
Power Efficiency |
≥89% |
Color Rendering Index |
≥75-80Ra |
Power Factor |
≥0.97 |
Beam Angle |
45°,90°,120° |
Total Harmonic Distortion |
≤9% |
Others | |||
Reflector |
Aluminum, Acrylic or PC |
Lifespan |
≥50000 Hrs |
IP grade |
IP54 |
Fixture Material |
Aluminum Alloy |
Working Temperature (Ambient) |
–25~+45°C |
Net Weight |
6.1kg |
Working Humidity (Ambient) |
15%~90%RH |
Dimensions of Body |
160X180mm |
Storing Temperature |
–30~+65°C |
Packing size |
27X27X38CM |
Materials:
1. High-purity Aluminium reflector, heat sink and hanging hook,
2. Aluminium alloy housing,Acrylic glass or PC cover,
3. CE or UL listed LED driver(power supply)
5. High powerful LED light source( Bridgelux/Epistar).
Dimension size of this 100w hi bay led lamp:
Distribution curve of this 100w hi bay led lights:
Illuminance flux of this led hi bay lamps:
Fearures of this 100watt led hi bay lighting:
-Aluminum Reflector Beam Angle 45/90/120 degree available. Crystal PC reflector and reflector with dustproof have 45deg and 120deg for option;
-Material: Lamp sheel adopts excellent aluminum, anodizing and anti-corrosion treatment, fancy performance, compact and beautiful structure.
-LED Chip: Use high brightness single semiconductor chip Bridgelux/Epistar as light source, use multiple integrated single-chip design.
-LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability.
-Lifespan: If works 12 hours per day, it can be used Five to Ten years, very low maintenance costs.
-Green: Pollution-free, no lead, mercury and other pollution elements, no pollution to the environments, no RF interference.
-Convenient to install, High universality, widely application ranges.
- Strictly inspected and passed CE,RoHS certificates;
-Product warranty is 3 years
Reflector for option:
Application of this 100w led hi bay lamp:
Widely used in stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Workshop, Warehouse, Supermarket, Shopping Mall, Exhibition Hall, Gas Station, Highway Toll Station, Dock etc.
