Product Description
Product Description
50w led industrial high bay lighting can replace 500w incandescent lamps, 400w halegen lamps, 150w HID lamps, and 100w energy saving lamps.
Model No.: SW-HB03-W50
We have top quality led industrial high bay lighting from 30w to 300w.
Here is the basic info:
1. Input voltage: AC85-265V, 50/60Hz, DC12V, 24V can be also made;
2. LED quantity: 1 piece 50w multi chip led array;
3. LED power: 50w;
4. Total power consumption: 56w;
5. Lamp efficiency: >89%;
6. Harmonic distortion(THD): <9%;
7. Power factor: >0.97;
8. LED efficiency: 100-110lm/w;
9. Initial led lumens: over 5000lm;
10. LED working voltage: DC30-34V;
11. Color temperature: 2700-7000k( we suggest 3000k for warm white, 5000k for pure white, and 6500k for cool white);
12. Color rendering index(CRI): >78Ra;
13. Distribution of the light: led+secondard distribution of the light reflector;
14. Protected grade: IP54;
15. Working temperature: -40- + 50degree;
16. Working humidity: 10-90%;
17. Life span: over 50000hours.
Beam angle of this 50w led industrial high bay lighting:
45, 90, 120degree; PC reflectors are also available.
Dimension:

Illuminance flux of this 50w industrial led high bay lighting:

Features of this 50w led high bay lights:
Actual picture of this 50w led industrial high bay lighting:










Model No.: SW-HB03-W50
We have top quality led industrial high bay lighting from 30w to 300w.
Here is the basic info:
1. Input voltage: AC85-265V, 50/60Hz, DC12V, 24V can be also made;
2. LED quantity: 1 piece 50w multi chip led array;
3. LED power: 50w;
4. Total power consumption: 56w;
5. Lamp efficiency: >89%;
6. Harmonic distortion(THD): <9%;
7. Power factor: >0.97;
8. LED efficiency: 100-110lm/w;
9. Initial led lumens: over 5000lm;
10. LED working voltage: DC30-34V;
11. Color temperature: 2700-7000k( we suggest 3000k for warm white, 5000k for pure white, and 6500k for cool white);
12. Color rendering index(CRI): >78Ra;
13. Distribution of the light: led+secondard distribution of the light reflector;
14. Protected grade: IP54;
15. Working temperature: -40- + 50degree;
16. Working humidity: 10-90%;
17. Life span: over 50000hours.
Product name |
50W Led High Bay Light
|
||
Product Model |
SW-HB03-W50 |
||
Optical Parameters |
Electrical Parameters |
||
LED Chip Brand |
BridgeLux/Epistar |
Input Voltage |
AC 85-265v |
LED Chip Type |
COB |
Power Frequency |
50-60Hz |
LED Chip Quantity |
1PC |
Output Voltage |
DC 30~36V |
Color Temperature |
2700~7000K Optional |
Decline |
1% within 3000Hrs |
Fixture Efficiency |
≥85% |
Total Power Consumption |
50W |
Light Efficiency |
100-110lm/W |
LED Power Consumption |
56W |
Luminous Flux |
>5000lm |
Power Efficiency |
≥89% |
Color Rendering Index |
≥75-80Ra |
Power Factor |
≥0.97 |
Beam Angle |
45°,90°,120° |
Total Harmonic Distortion |
≤9% |
Others | |||
Reflector |
Aluminum, Acrylic or PC |
Lifespan |
≥50000 Hrs |
IP grade |
IP54 |
Fixture Material |
Aluminum Alloy |
Working Temperature (Ambient) |
–25~+45°C |
Net Weight |
10.8kg |
Working Humidity (Ambient) |
15%~90%RH |
Dimensions of Body |
160x100mm |
Storing Temperature |
–30~+65°C |
Packing size |
27X27X30CM |
Beam angle of this 50w led industrial high bay lighting:
45, 90, 120degree; PC reflectors are also available.
Dimension:

Illuminance flux of this 50w industrial led high bay lighting:

Features of this 50w led high bay lights:
-Aluminum Reflector Beam Angle 45/90/120 degree available. Crystal PC reflector and reflector with dustproof have 45deg and 120deg for option;
-Material: Lamp sheel adopts excellent aluminum, anodizing and anti-corrosion treatment, fancy performance, compact and beautiful structure.
-LED Chip: Use high brightness single semiconductor chip Bridgelux/Epistar as light source, use multiple integrated single-chip design.
-LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability.
-Lifespan: If works 12 hours per day, it can be used Five to Ten years, very low maintenance costs.
-Green: Pollution-free, no lead, mercury and other pollution elements, no pollution to the environments, no RF interference.
-Convenient to install, High universality, widely application ranges.
- Strictly inspected and passed CE,RoHS certificates;
-Product warranty is 3 years

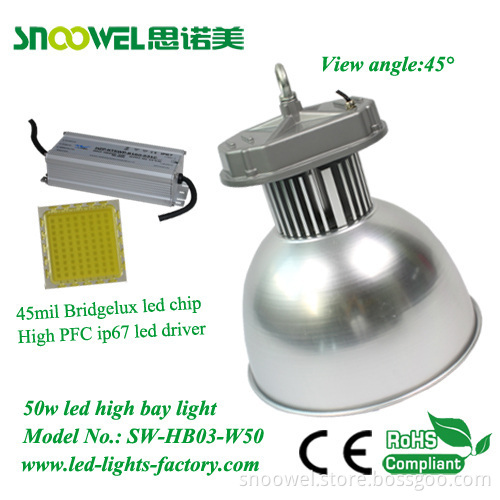

Actual picture of this 50w led industrial high bay lighting:
