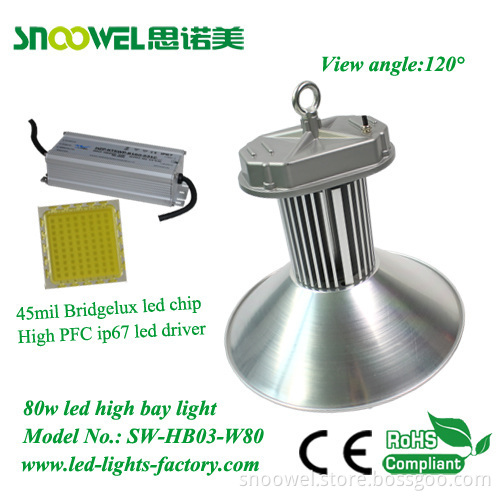

Ce Passed 80w Cob Led Bay Light For Gas Station
  • Ce Passed 80w Cob Led Bay Light For Gas Station
Ce Passed 80w Cob Led Bay Light For Gas Station

Ce Passed 80w Cob Led Bay Light For Gas Station

Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Product Description
Product Description
Main points of this 80w cob high bay led lights for gas staton,industrial:
Input voltage:AC85-265V,277V,305V available
Light source:COB 1PC
Led chip:Bridgelux or Epistar
Lumen led:100-110LmW high brightness
Power supply:high performance,CE passed led driver,Meanwell UL approval driver is available
Color index:>78Ra for cool white and white
Power factory:>0.97
Power effieciency:89%
Lifespan:5000hours
Warranty:3 years
Certificate:CE,RoHS

Specification:
Input Voltage
AC85-265V
Color Rendering Index
Ra>78
Freqency Range
50~60Hz
Beam Angle
45/90/120°
Power Factor
>0.97
LED Reduction Rate
1~3% / 1,000Hrs
Power Efficiency
>89%
Color Temperature
2700~7000K
ED Working Voltage
DC30~36V
Working Temperature
-20℃~+45℃
LED Power
80W
IP Grade
IP54
Total Power
92W
Working Life-span
>50000H
Luminous Efficiency
100-110lm / W
Power line
VDE 3×0.75mm2
Connect wire
Brown→L Blue→N Yellow or Green→G

Lamp size for 45degree of this 80w high bay led lamps:

Lamp size for 120degree reflector:


Illuminance flux for this industrial 80w led highbay light:
80W Industrial Led High Bay light for Gas Station

Reflector with different view angle for option:
80W Industrial Led High Bay light for Gas Station
.
Certification:
80W Industrial Led High Bay light for Gas Station

Features of this 80w cob led high bay lights:
-Aluminum Reflector Beam Angle 45/90/120 degree available. Crystal PC reflector and reflector with dustproof have 45deg and 120deg for option;
-Material: Lamp sheel adopts excellent aluminum, anodizing and anti-corrosion treatment, fancy performance, compact and beautiful structure.
-LED Chip: Use high brightness single semiconductor chip Bridgelux/Epistar as light source, use multiple integrated single-chip design.
-LED Driver: Built-in-cross-flow Meanwell power supply, to ensure the lamp's stability.
-Lifespan: If works 12 hours per day, it can be used Five to Ten years, very low maintenance costs.
-Green: Pollution-free, no lead, mercury and other pollution elements, no pollution to the environments, no RF interference.
-Convenient to install, High universality, widely application ranges.
- Strictly inspected and passed CE,RoHS certificates;
-Product warranty is 3 years

Packing:
CE passed 80W Cob Led Bay light for Gas Station

Applications of this 80watt led high bay lamps:
80W Industrial Led High Bay light for Gas Station

Actual pictures of this cob 80w high bay led lamps:
CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station

CE passed 80W Cob Led Bay light for Gas Station
