Top Quality China Ul Listed 200w Led Industrial Lighting

Model No.:SW-HB04-W200
Input voltage: AC90-305V

Beam angle: 45, 90w, 120 degree
Color temperature: Warm white(2700-3200k), pure white(4500-5500k), cool white(6000-7000k).

Specifications of this 200w led industrial lighting:

LED consumption	200w
Working Voltage	90-305V AC
LED chip brand	BridgeLux 45MIL
Frequency Range	50~60Hz
Power Factor(PF)	>97%
Total Harmonic Distortion	<9%
Color Temperature	2700-7000K
Color Rendering Index(CRI)	>78Ra
LED Luminous Efficiency	100-110LM per wattage
Working Environment	working temperature -40oC~50oC
	working humidity 10%~90%
IP Rating	IP54
Working Life	>50,000 hours
Light Body & shade Material	Aluminum Alloy
Beam Angle	45°/90°/120° for Aluminum Reflector
Certificates	CE and RoHS; UL approved driver
Warranty	3-year warranty

Main features:
1. One piece high quality COB led array with BridgeLux 45MIL led chip;
2. This 200w led industrial lighting can reach 20000lm;
3. The body was made of high quality alumimum, and the heating dissipation is very excellent, the lumen decay will be very slow;
4. Using top quality Mean Well led driver, which is one of the best brand of led driver in the world;
5. Very easy installation; very low cost on maintaining.


Size for this 200w led industrial lighting:


Light distribution curve of this 200w led low bay lights:


Illuminance flux datas:
view angle 45deg


View angle 90deg


View angle 120deg



SNOOWEL after service:

*If the driver of our street light failed, we will send you a new one for replacement all at our cost;
*If the led array of our street light failed, we will send you a new one for replacement all at our cost;
*For quality problem of unclear reason, we will send new items for replacement first all at our cost.
We have very strict quality control from materials perchasing to finished products delivery, all the products will be tested and aged strictly before shipping, so the quality will be very stable.

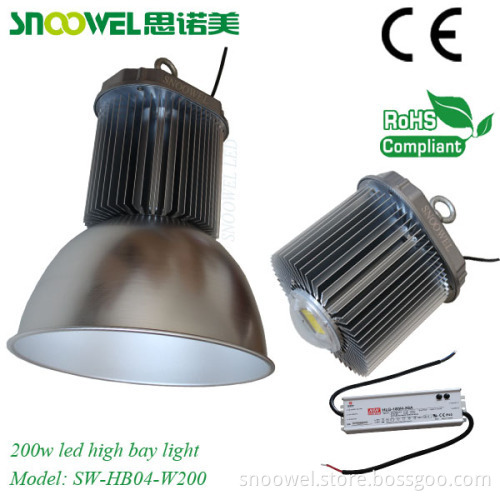

Actual picture:
