2013 Promotion Products Camera Flex Strip Fpc

2013 Promotion Products Camera Flex Strip Fpc

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

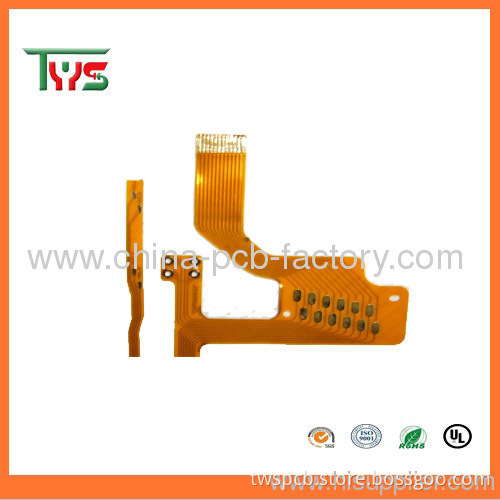

camera flex strip fpc

We do believe Multech has advantage for you and right supplier what you wanted.
1.Genaral introduction for Multech:

Founded in Y1997 and hold plant In production areas 15000 square meter and total 1500 employee in China
Sales annual turnover 32 Million US$ in 2007, growing 20% incremental yearly.(Last year annual sales volume achieve 59 Million US$)
About 80% PCBs exported to oversea customers in Europe,United States and Asian.

2.The PCB products:

Apply to industrial application, medical equipment, power supply and so on.

3.Multech's advantage for you:
We have two production line , one is for quick-turn , the other one is for standard line. So we could offer the competitve price as per customer ture requirement.

Advantage:

1.Accurate and strick color matching according to customer's requirement,both Panton and Ral color matching system ,using advanced light box and computer color mataching,we can also do half-tone printing

2. Good material control to make sure all the material are high quality ,all the material we used are Rohns compliant

3.Our engineer will work with customers and reommend specail constrution design to meet customer's desires ,such water proof ,dust proof and anti corrasion and so on

4. Strick quality inspection ,100 % funtional tesiting ,and we can also do specified testing ,such as humility testing ,life expectancy testing ,actuation force testing.

5. We are qualified Dara switch .5. Except membrane switch and touch screen, we can also do different types of assembly,such as membrane switch and touch screen with FPC, PCB ,silicone rubber ,metal backer ,plastic bezel and so on.

6. We can accept small quantity order and offer competitve price.

Specification:

Item	Capabilities
1.Base Material	FR-4 / High TG FR-4 / Lead free Materials (ROHS Compliant) / Halogen Free material /CEM-3/CEM-1/ /PTFE/ROGERS/ARLON/TACONIC
2.Layers	1-30
3.Finised inner/outer copper thickness	1-12OZ
4.Finished board thickness	0.2-7.0mm
	Tolerance	Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8%
5.Max panel size	≤2sidesPCB: 6001500mm Multilayer PCB: 5001200mm
6.Min conductor line width/spacing	Inner layers: ≥3/3mil Outer layers: ≥3.5/3.5mil
7.Min hole size	Mechanical hole: 0.15mm Laser hole: 0.1mm
	Drilling precision: first drilling		First drilling: 1mil Second drilling: 4mil
8.Warpage	Board thickness≤0.79mm: β≤1.0% 0.80≤Board thickness≤2.4mm: β≤0.7% Board thickness≥2.5mm: β≤0.5%
9.Controlled Impedance	+/-5%
10. Aspect Ratio	15:1
11.Min welding ring	4mil
12.Min solder mask bridge	≥0.08mm
13.Plugging vias capability	0.2-0.8mm
14. Hole tolerance	PTH: +/-3mil NPTH: +/-2mil
15.Outline profile	Rout/ V-cut/ Bridge/ Stamp hole
16.Surface treatment	OSP: 0.5-0.5um HASL: 2-40um Lead free HASL: 2-40um ENIG: Au 1-10U'' ENEPIG: PB 2-5U''/ Au 1-8U'' Immersion Tin:0.8-1.2um Immersion silver: 0.1-1.2um Peelable blue mask Carbon ink Gold plating: Au 1-150U''
17. E-testing pass percent	97% pass for the first time,+/-2%(tolerance)
	FQC-Physical Lab: Reliability tests
18.Certificate	ROHS UL:E327776 ISO9001:2008 IPC SGS

Our equipments
1.Drilling workshop	4 drilling bits of drilling machine: 4 sets 2 drilling bits of drilling machine: 2 sets
2. photo plotting workshop	Israel "ORBOTECH" Photo Plotters
3.AOI	AOI machine
4.IPQC	"OXFORD" CMI 700 Copper Thickness Tester
5.Impedance test	USA "Tektronix" DSA 8200 Impedance Tester
6.Outline workshop	CNC routing machine: 7 sets angle-cutting machine V-cut machine
7.Testing Workshop	Surpass X-600: 2sets WTD FT-2808: 5sets WTD HV300: 1set
8.X-ray	X-ray machine

Acceptable file format
GERBER file, PROTEL series, PADS series, POWER PCB series, AutoCAD series.
