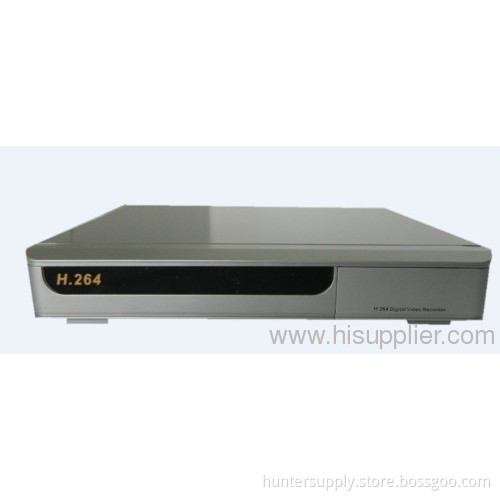

8ch Competitive Digital Video Recorder

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Products :8ch DVR

8CH DVR
8chcompetitivedigitalvideorecorder

Model	AP-3108C
Main processor	Technical grade embedded microprocessor HI 3520A
Operating system	Embedded LINUX operating system
System resource	Multi-channel real-time recording synchronously, multi-channel real-time playback, multi-channel multi-user network operation, USB back up.
Operation interface	16bit real color GUI interface support mouse operation
Display screen	1/4/9 screen
Video standard	PAL(625 lines,50fps);NTSC(525 lines,60fps)
Image encode	H.264(High Profile)
Monitor quality	Monitor:D1&CIF ;VGA
Playback quality	CIF
Motion detection	Each channel can set 192(16*12)detection area;can set multi-level of flexibility (for local analog channel only)
Audio compression	ADPCM
Bidirectional talk	NONE
Record mode	manual>alarm>motion detection>timing
Local playback	8CH
Video search	time\date\event\channel search
Space occupation	Video:CIF 4~5G/daychannel, D1 16~20G/daychannel; audio:691.2M/day*channel
Video storage	Local HDD \Network
Back up mode	Network backup\USB portable HDD\USB imprint\SATA imprint
Video input	8ch CVBS/BNC(1.0Vp-p,75Ω)
Video output	1ch CVBS/BNC(1.0Vp-p,75Ω),1ch VGA
Audio input	1ch RCA(200-2800mV,30KΩ)
Audio input	1ch RCA(200-3000mV,5KΩ)
Alarm input	N/A
Alarm output	N/A
Network port	RJ45 10M/100M self-adaptive Ethernet port
PTZ control	1 RS485 support multi kinds of PTZ protocol
USB port	2*USB2.0
HDD port	1 SATA ports
Power	12V/2.5A
Consumption	<15W(not including HDD)
Temperature	0℃-+55℃
Humidity	10%-90%
Atmosphere pressure	86kpa-106kpa
