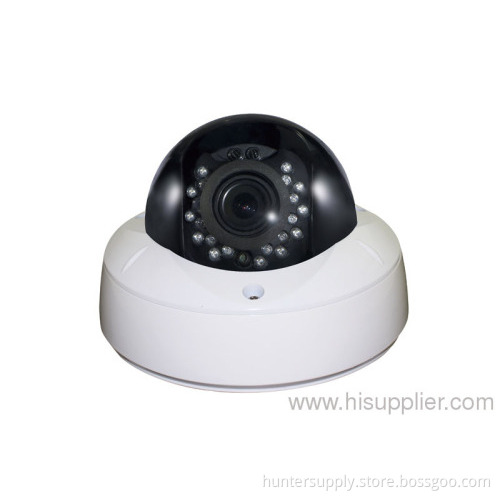

1080p Ir Vandalproof Hd Sdi Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Products :1080P IR vandalproof HD SDI camera

1080P IR vandalproof HD SDI camera
1080PIRVandalproofHDSDIcamera

HD-SDI CAMERA,CMOS Megapixel sensor
SupportWDR,3D-DNR
DAY and NIGHT ICR function
OSD menu,Motion detection
Digital Zoom function
SDI and VIDEO dual signal output
convenientfor test and installation
IR Led :21pcs*￠5mm,IR Range:20M
Match 2.0 Mega pixel 2.8-12mm,ICR+DC lens
1080PIRVandalproofHDSDIcamera

Imaging Sensor	1/3" 2.1 Megapixel CMOS
Scanning System	Progressive Scan
Number of active pixels	1944(H) X 1092(V) = 2, 122, 848(pixel)
Total number of pixels	2010(H) X 1108(V) = 2, 227, 080(pixel)
S/N Ratio	More than 50dB
Video Output Mode	1080P(1920 X 1080) 25P/30P
Video Output Level	HD-SDI / 1.0 Vp-p (75Ω, Composite) NTSC/PAL(Selectable)
Min. Illumination	1.0Lux(Color), 0.5Lux(BW), 0.02Lux(Sens-up x60)
O.S.D	Built-in
Electronic Shutter Speed	(NTSC : 1/30sec ~ 1/50, 000sec) (PAL : 1/25sec ~ 1/50, 000sec)
White Balnace	AWB /AWC-SET / MANUAL / INDOOR / OUTDOOR
Backlight Compensation	BLC / HSBLC / Off
ACCE(Adaptive Color&Contrast Enhancement)	Low /Middle / High / Off
AGC	Low /Middle / High
Adjust	SHARPNESS / MONITOR / LSC / NTSC / PAL
Language	English (Selectable)
Day & Night	Auto / B.W / Color / EXT (Selectable)
2D/3D-NR	2DNR / 3DNR / SMART NR
Digital Zoom / PIP	On / Off (x2 ~ x64)
Privacy Masking	On / Off (8 Zone Selectable)
Motion Detection	On / Off (3 Zone Selectable)
Defect	LIVE DPC / STATIC DPC
Sens - up(Frame Integration)	On/ Off (Selectable limit ~ x60)
D - EFFECT	Freeze / Mirror / D-Zoom / NEG. IMAGE
Defog	High/Middle/Low/Off selectable
Communication	RS - 485 [Baud Rate : 2400 ~ 57600 ]
Lens	2.8-12mm
IR LED	21pc, 20m IR distance
