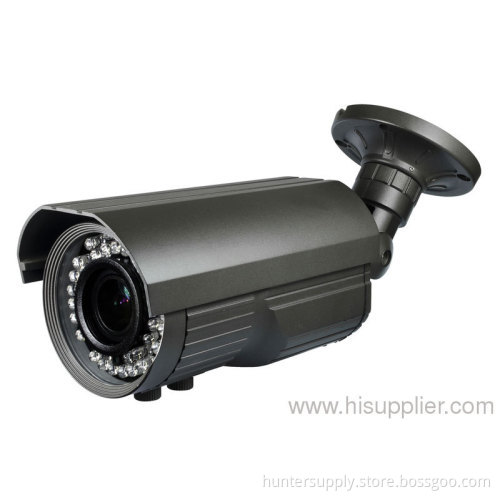

 Products : Infrared  Motion   Detection   cameras


                 Infrared  Motion   Detection   Cameras
Infraredmotiondetectionnightvisioncameras
1.HighDefinitionMega Pixels HD-SDI  Camera                                                                                                                                                             2. 1/2.8''2.2MPPanasonicProgressive scan CMOS Sensor
3. Max.1920(H)x1080(V)2Megapixels
4. TDN(ICR),DSS,OSD,DWDR
5. Excellent low light sensitivity(0.05Lux,B/W)
6. 3D-DNR,BLC,Digital Zoom(Max.20x)
7 2Megapixels real time with coaxial cable
8. 1CH CVBS output support
9. Dual glass, no IR diffusion and fog
10. IP66, outdoor installation
11 Easy-Plug Bracket
12. IR Distance40M
13. Adopting 42PCs x5mm IR Leds
14. Standard lens: 2.8-12mm manual   VF lens
Infraredmotiondetectionnightvisioncameras
Imaging Sensor
1/2.8" Panasonic CMOS
Total Pixels
2010(H) x 1108(V) = 2,227,080 (pixel)
Active pixels
1944(H) x 1092(V) =  2,122,848 (pixel)
Scanning system
Progressive Scan
Resolution
Digital ; 1920x1080p(1080p/30fps) , 1280x720p(720p/60fps)
Min. illumination
Color DSS : 0.002 lux , BW DSS : 0.001 lux
S/N Ratio
More than 50dB (AGC off)
Video Output
HD-SDI
Video Output
Analog : NTSC, PAL(w/o WDR)
Brightness
0 ~ 20
Shutter
AUTO/MANUAL(1/30(25)~1/6000)
Sens-up
OFF/x2/x3/x4/x5/x6/x7/x8
AGC
0 ~ 20
Backlight
OFF/HLC/BLC/WDR
Day&Night
AUTO/COLOR/B&W/EXT.
White Balnace
AUTO/AUTO ext/PRESET/MANUAL
DNR
OFF/LOW/MIDDLE/HIGH
Sharpness
0 ~ 10
Mirror
ON/OFF
FLIP
ON/OFF
D-WDR
OFF/LOW/MIDDLE/HIGH
Shading
ON/OFF
Privacy
ON(32 Points)/OFF
Frame Rate
25 FPS/30 FPS
CVBS
NTSC/PAL
Communication
RS-485(Baud Rate:2400-115200)
Lens
2.8-12mm 2 Megapixel verifocal Lens
IR LED
42pcs
