60pcs Smd 5050 Rgbw Led Strip Light Ribbon

60pcs Smd 5050 Rgbw Led Strip Light Ribbon

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

Features - SMD5050 RGBW LED strip Single Row

This RGBW LED Strip is made with SMD5050 RGB LEDs and White LEDs respectively, it's controllable by the touch screen RGBW controller with various different lighting effects. Since the RGB LED light strip can't satisfy people with the lighting effect of the R, G, B mixed white colour (it's not as beautiful as the single white LEDs). So we add the separate white colour LED to the design of this NEW RGBW LED strip light to meet the actual application.

Main Specification - High Output RGBW SMD5050 LED tape light

LED TYPE	RGB+white Top SMD5050 LED Epistar
Q'TY PER METER	60LEDs, 72LEDs optional
POWER CONSUMPTION	Max 14.4watts, 17.2watts per meter
INPUT VOLTAGE	24V DC OR 12vDC
DIMENSIONS	10, 12, 14mm Wide PCB, 5m length
DRIVER FOR 5 METERS	100 watts 24V Power Supply Recommended
IP RATING	Indoor or outdoor using
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
LIFESPAN	>50,000Hours
STANDARDS	CE, RoHS
HOUSING	Copper PCB
CONNECTOR	DC connector and other kind OF RGB LEDstrip accessories
EMITTING COLOUR/model	RGBW full colours changing, chasing, effect lighting

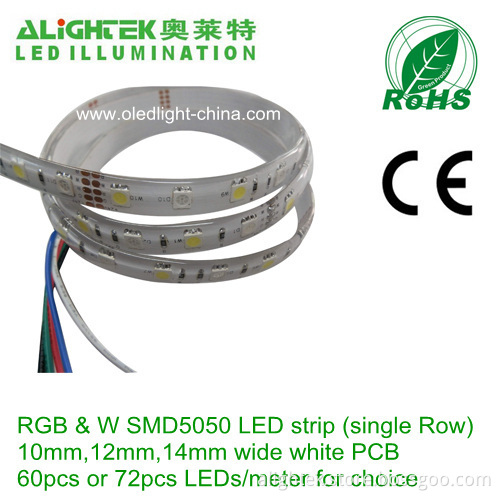

Photo - Controllable 5050SMD flexible RGBW LED light strip

Lighting effect of the Flex SMD5050 RGB LED tape light ribbon

RGBW SMD5050 LED ribbon light waterproof type for your option below

Installation Schematic Diagram -5050 RGBW flexible LED strip

ALIGHTEK Quality Control

To supply the good quality of LED strip backlights. Alightek be sure to guarantee the product quality from raw material sourcing to production and after-sale service.

Quality Control Process under the following steps EXTREMLY strict;

1. IQC (raw material quality control)

2. IPQC (on production quality control)

3. FQC (finished product quality control)

4. OQC (delivery product quality control)

5. CQE (customer quality engineer)

Procedures/testing Details

A. Inspection to raw materials

B. Inspection in the process of production

C. Inspection to finished products

D. Aging test

E. Inspection before packing
