Basic Info

Product Description

Core advantages of SMD2835 FLEX LED stripes

- More brighter: Rectangular illuminator with much bigger light-emitting area to be 20 ~ 25LM

- Best heat dissipation: Much bigger area for heat emission, also design with heat sink

Detailed competitive advantages SMD 2835 LED

1. A vertical structure: LED chip directly conduction the heat sink to improve thermal performance, which could make it bear more electrical current (40-60mA);

2. Oversized heatsink: more than 2-3 times bigger heatsink than SMD3528, 3014, excellent design of the cooling performance, which could ensure the LED chip less light decay, more long lifetime;
3. Large emitting surface: could improve the Light emitting rate that up to 90%.
4. Ultrathin structure: long-standing problem of 3528,3014 LEDs' light spot been resolved with this design ;

5. High optical efficiency: more than 3528,3014 2-3 times higher luminous efficiency, luminous efficiency up to 90-100LM / W;
6. Super stability : Low light decay materials, processes, process maturity and stability.
7. Best cost performance: could achieve the same luminous flux, but 20 percent lower cost than 3528,3014

The comparison chart of SMD2835, SMD3014, SMD3528 LEDs.

Main Feacutres of SMD2835 LED Strip light
1).Available in full range of single-color: red, yellow, blue, green, white, Pink, Purple, RGB full-color.

2).Easy to install by the 3M tape on the PCB back

3).Low power consumption .High intensity and stability.

4).Unique circuit design with strong resistance against static electricity ensures the stability of the strips for long lifespan guaranteed

5).Easy connection with snap-in connectors

6).Solid-state,high shock and vibration resistant .

7).No RF interference

8).Long life 100,000 +hours

9).Certifications: ROHS and C

Main parameters to 120 LEDs per meter SMD 2835 LED light ribbon

LED Q'TY & TYPE	120pcs/meter Top2835 Epistar SMD LED
POWER CONSUMPTION	14.4 watts Max per meter
INPUT VOLTAGE	12vDC
CONNECTOR	DC Plug etc
LUMEN PER LED	20 ~ 25 LM
LIGHT COLOUR	Warm White, Cool White, Red, Green, Blue, Yellow
BEAM ANGLE	120*degrees
VIEWING ANGLE	Adjustableby Mounting Position
DRIVER-Constant Current	more than 180 watts 12V Power Supply Required for 5 meters
DIMMABLE	Yes
LIFESPAN	>60,000Hours
STANDARDS	CE,RoHS
IP RATING	IP20 Indoor Use Only
HOUSING	CopperPCB
DIMENSIONS	10 mm Wide, 5m length

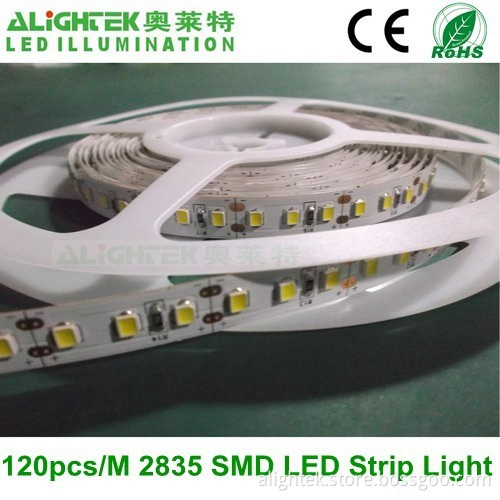

Real Photos of Flexible LED stripes 2835

2835 Flexible LED stripe

120pcs SMD 2835 LED stripes

WE, ALIGHTEK is a reliable LED lights Manufacturer who mainly focus on Residential LED Lighting, Commercia LED Ligtingand Industrial LED Lighting products.

We provide you Good Quality Product with Reasonable Price:
1. Each Product inspected with Strict Quality Control System.
2. Perfect service: Best Pre-sale, In-sale and After-sale Service.

Any Project Consulting Inquiry will be also Highly Welcomed; we would offer you the professional solution.

Welcome to contact us to know more about our company and products and achieve a win-win business together.
